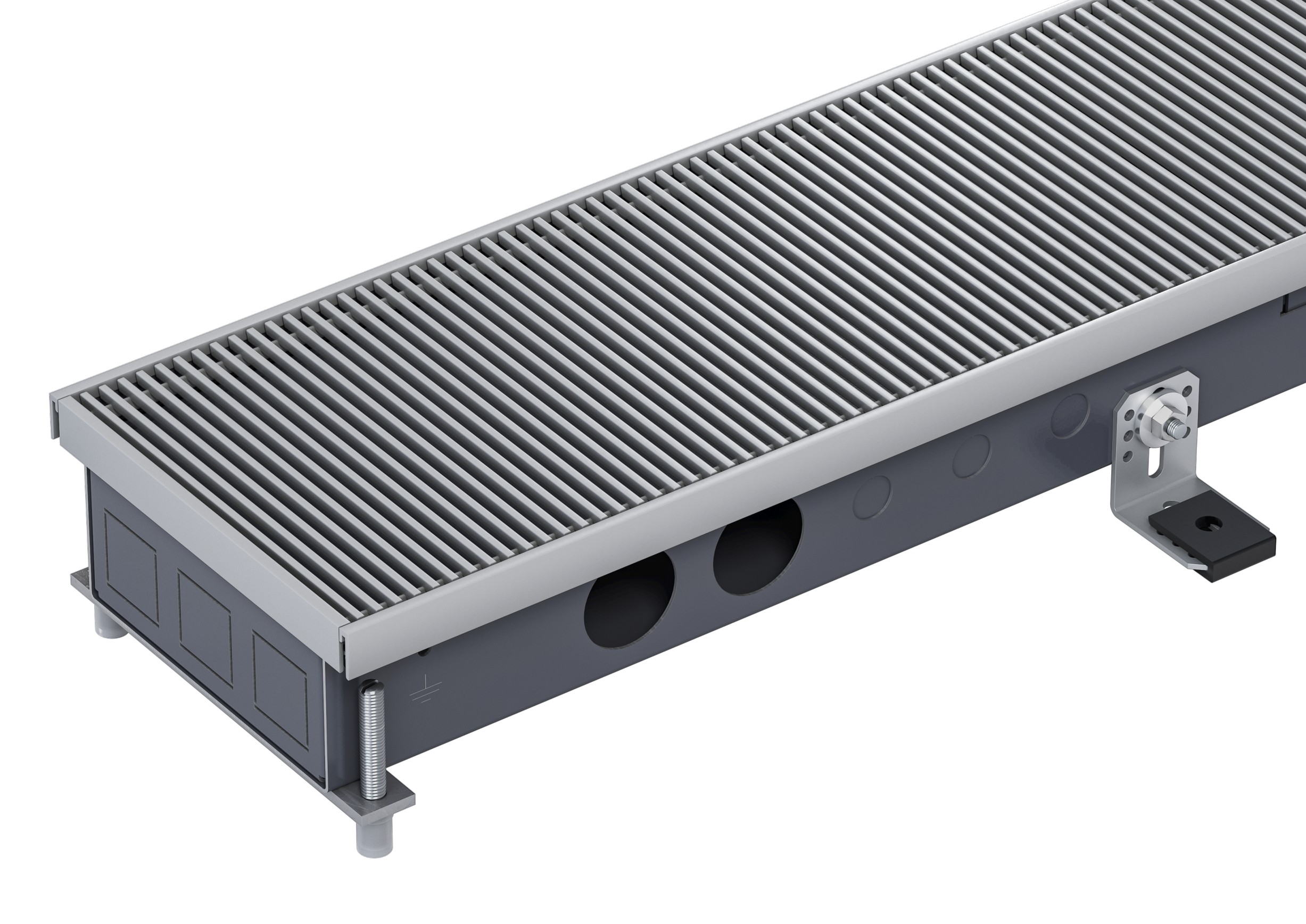

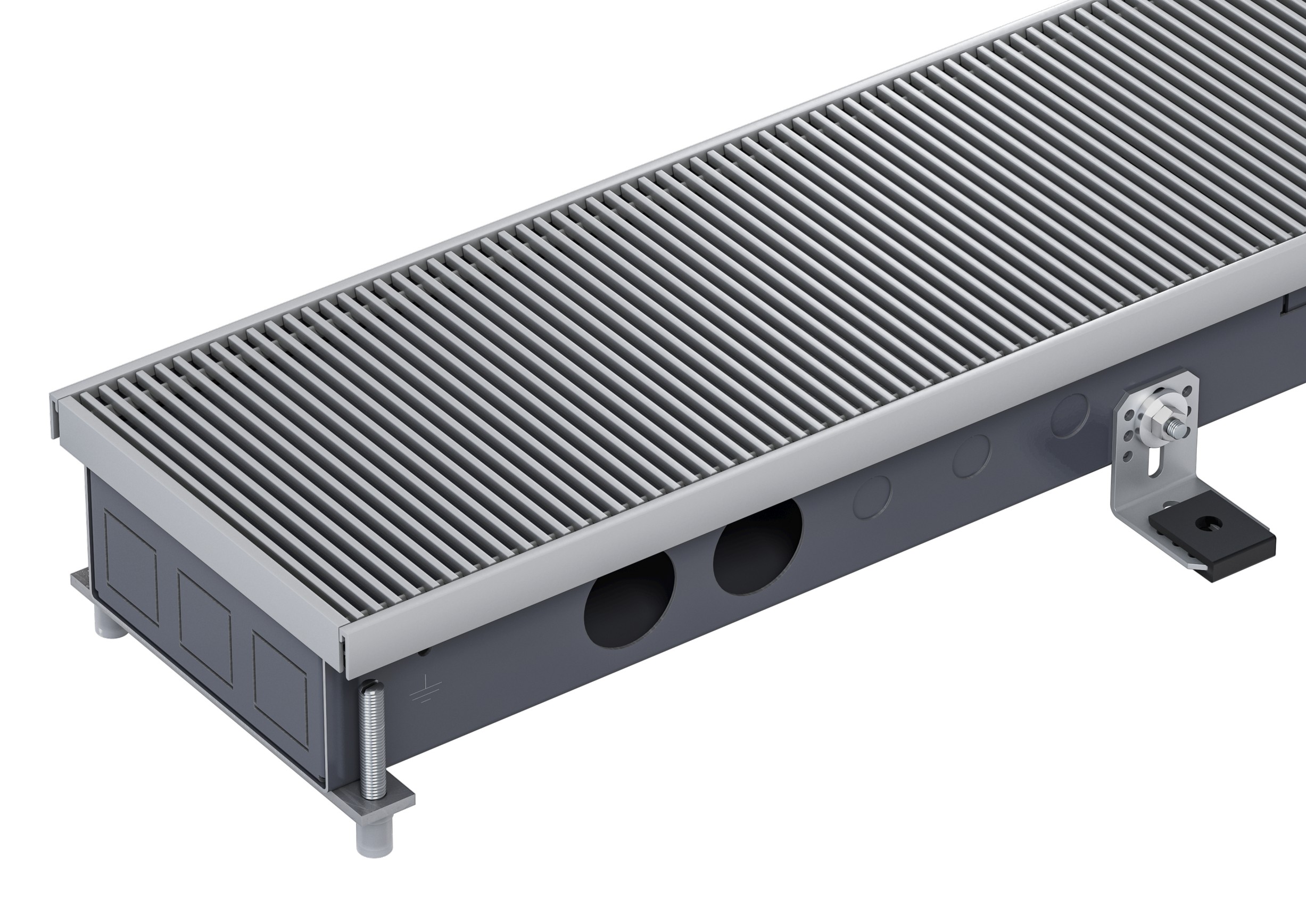

Katherm QK nano

Trench units are mounted in the floor along floor-to-ceiling window surfaces. In combination with modern heating systems, effective and energy-saving heating of rooms can be achieved by the Katherm QK nano. The room air is drawn in by the fan, guided over the parallel convector and blown out into the room. The convector arranged on the window side ensures optimum cold air screening of the window, so that the heated air flows into the room without draughts.

The Katherm QK nano is available in different lengths for heating the room as required. The unit has a convector, which consists of round copper pipes with aluminium fins and through which hot water flows. The EC cross-flow fan installed in the Katherm QK nano ensures that air flows evenly through the convector. The fan is controlled by a stepless speed control via an external 0-10 V signal. The units are also equipped with an electrotechnical control system to enable the units to be regulated according to the customer’s requirements.

The unit components are mounted in a floor trench, which is covered by a linear or orthogonal grille. This decorative cover of the trench unit is available in steel and stainless steel. The Katherm QK nano trench unit is used to heat rooms with large window areas. Exemplary areas of application for the unit are hotels, offices, sales and exhibition rooms.
