EPD-IES-0017814:002
Nordic R H2 Low

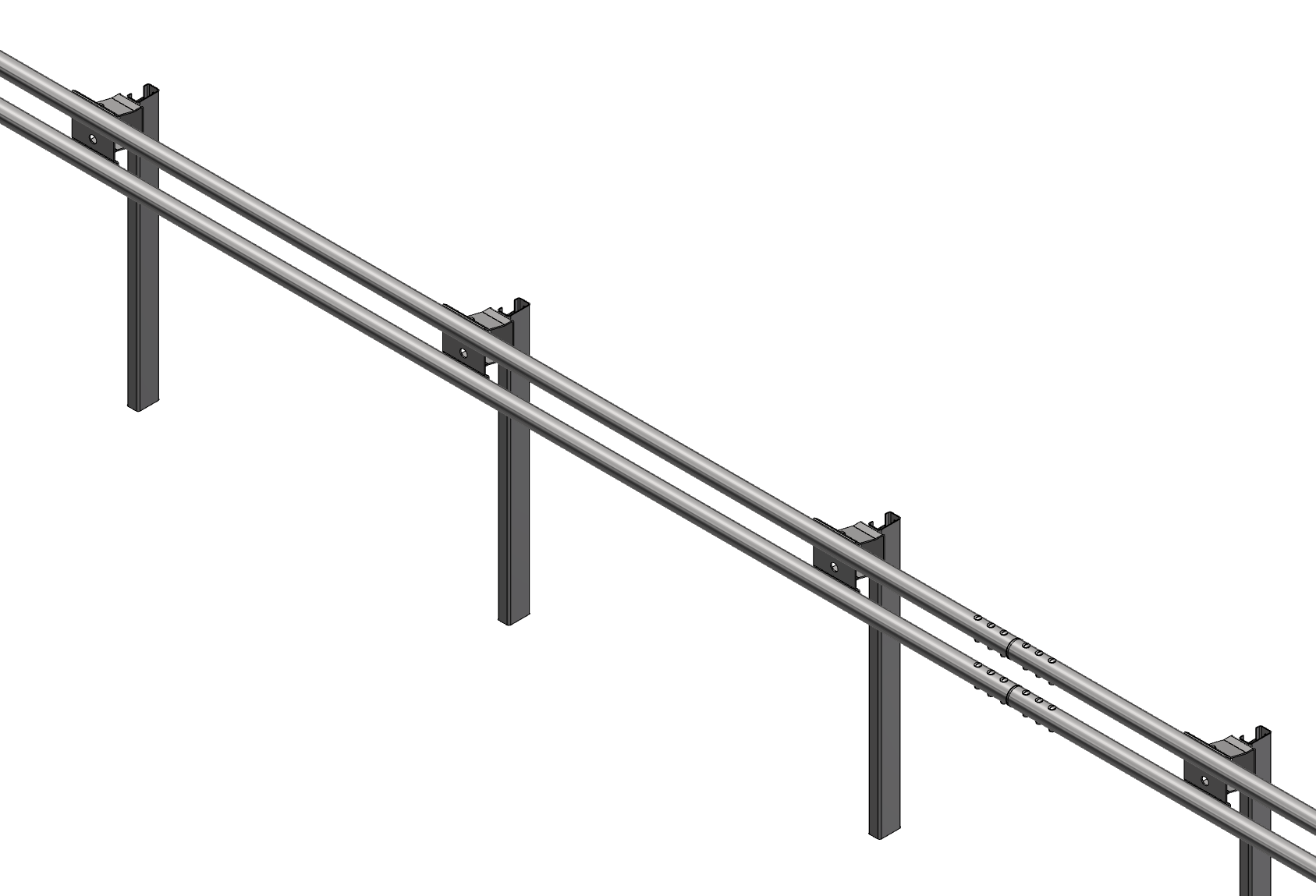

Safety barrier with pipes fixed at distance element and C120 post installed in soil or with base plate on concrete. Ground surface at installation site: gravel, asphalt, concrete etc.
Harmonized standard: EN1317-5:2007 / A2:2012
The construction width is 0.4 meter and the height is 0.73 meter.
The safety barrier has a containment level at H2 and an impact severity level at A.
The normalized working width is W4 (1.2 m) with a post spacing at 2 meter.
Vehicle intrusion class: VI1.5
Dynamic deflection: 1.1 m.
The steel is hot dip galvanized coatings according to SS-EN ISO 1461:2009 National Annex. Fe/Zn 115.
Expected service life 50 year.
| Registration number | EPD-IES-0017814:002 |
|---|---|
| Status | Valid |
| Version date | 2024-12-04 |
| Validity date | 2029-12-04 |
| PCR | 2019:14 Construction products (EN 15804+A2) (version 1.3.4) 1.3.4 |
| c-PCR | 2019:14-c-PCR-010 Guardrails and bridge parapets (c-PCR to PCR 2019:14) 1.0.0 |
| Standards conformance | |
| Geographical scope | Global, Norway, Finland, Sweden |
| LCA Practitioners | ida.adolfsson@tyrens.se, Nordic Road Safety AB |
