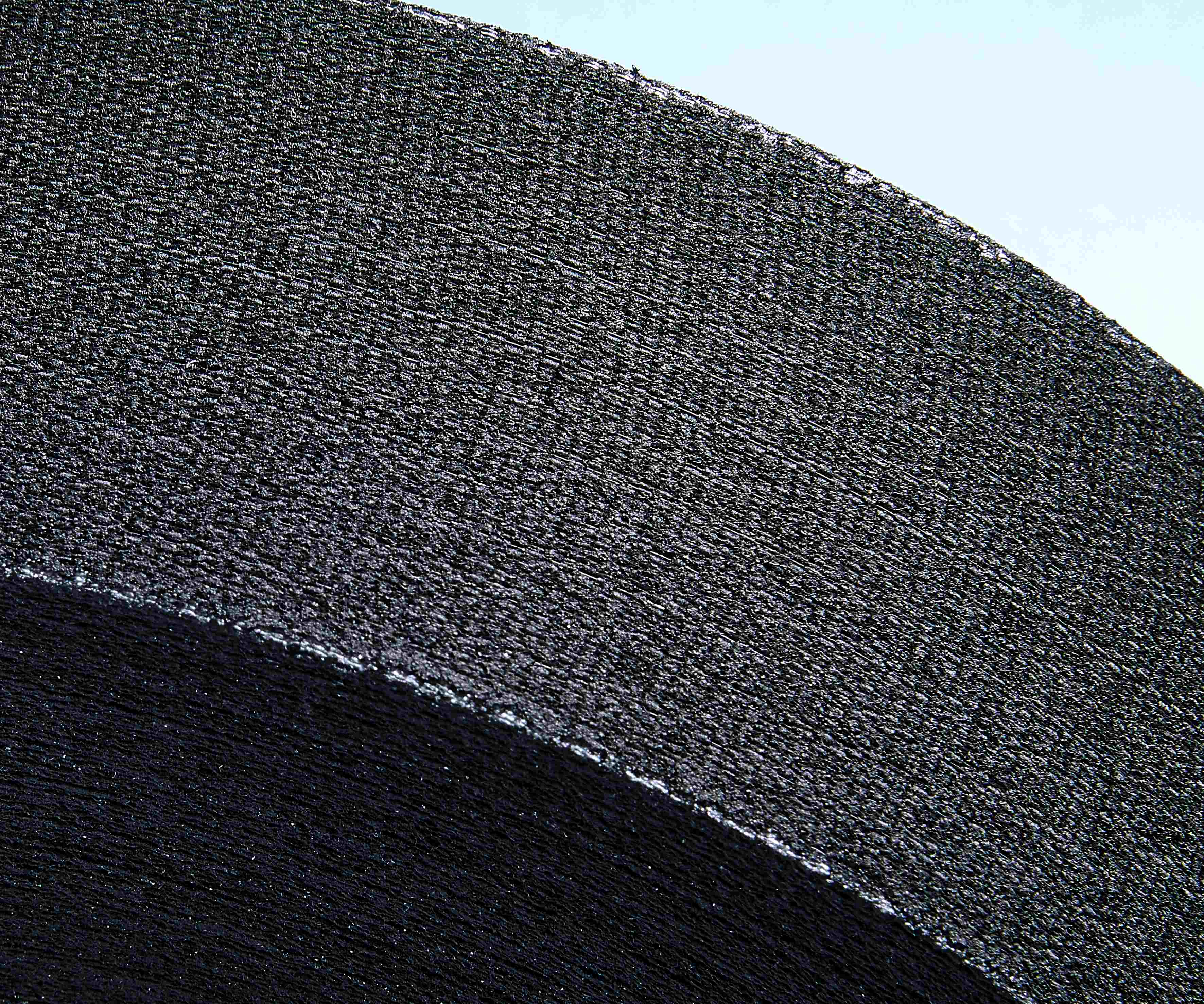

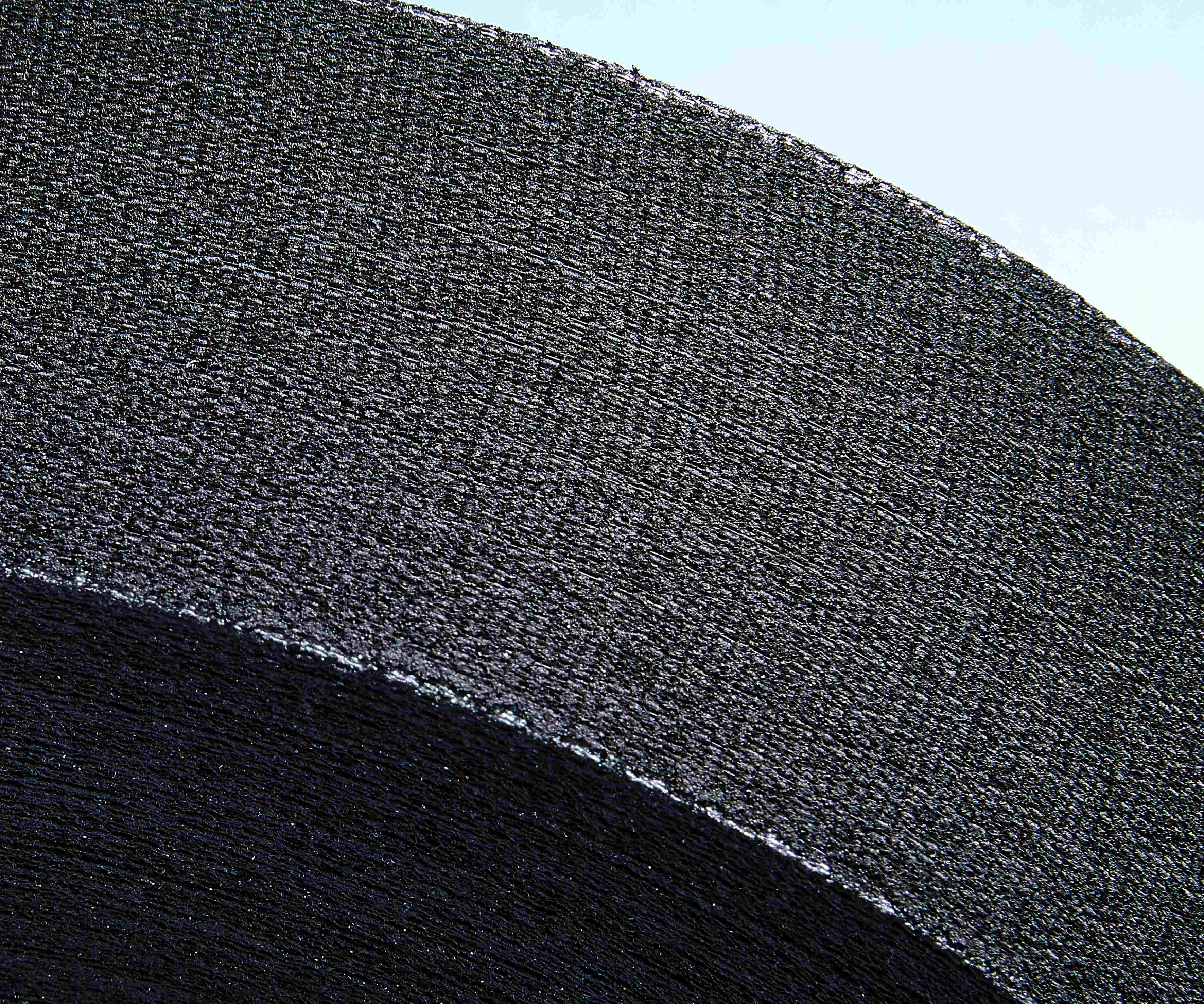

Semi-conductive Woven Water blocking Tape(Copper Wire Inserted Rayon Water Blocking Tape)
Semi-conductive woven Water Blocking tapes are used for power cable with the purpose of preventing moisture penetration into the cables. An excellent absorbency of moisture allows powder to absorb moisture directly and start to expand immediately to fill up all the interstices after moisture has penetrated.
- Equalizing the field current of conductor and insulation and efficient system that achieves a longitudinal moisture barrier
- Smooth transition to the insulation and uniformed electrical characteristics
- Not causing chemical changes and/or material changes
It could be used
• To block the moisture penetration between the core and the metal screening layer.
• To be used under the metal screening layer and / or under the corrugated metallic sheath in high and extra high voltage cables.
• To have good electrical contact between metal screen and the insulation shield.
• To protect cable core.
• To be used as a heat barrier.
Registration number | EPD-IES-0017875:003 |
---|---|
PCR | 2022:04 Fabrics 1.0.3 |
Status | Valid |
Publication date | 2025-01-30 |
Valid until | 2030-01-29 |
EN 15804 compliant | No |
Geographical scope | Global, South Korea |
