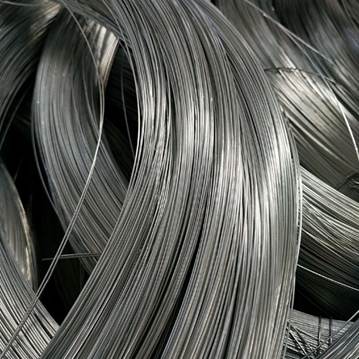

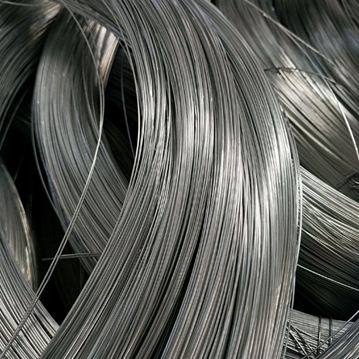

GALVANIZED IRON WIRE

Galvanized iron wire is widely applied in multiple industries including construction, coal, mining, petrochemical engineering, machinery manufacturing, environmental protection and so on.

Type Description

Material Low carbon steel

Diameter BWG4-BWG26, BWG28, BWG 30

Zinc Rate 10-20g/m2

Tensile 30kg-70kg/mm2.350-550/mm2

Elongation Rate 10%-25%

Weight/ Coil 0.1kg-1000kgs/coil

Galvanized iron wire has various specifications with different diameter, decided by the demand, which can be seen in table below.

Wire Gauge Size SWG(mm) BWG(mm) AWG(mm)

BWG4 5.893 6.05 5.19

BWG5 5.385 5.588 4.62

BWG6 4.877 5.156 4.11

BWG7 4.470 4.572 3.67

BWG8 4.046 4.191 3.26

BWG9 3.658 3.759 2.91

BWG10 3.251 3.404 2.59

BWG11 2.946 3.048 2.30

BWG12 2.642 2.769 2.05

BWG13 2.337 2.413 1.83

BWG14 2.032 2.108 1.63

BWG15 1.829 1.829 1.45

BWG16 1.626 1.651 1.29

BWG17 1.422 1.473 1.15

BWG18 1.219 1.245 1.02

BWG19 1.016 1.067 0.91

BWG20 0.914 0.839 0.812

BWG21 0.813 0.813 0.723

BWG22 0.711 0.711 0.644

BWG23 0.610 0.635 0.573

BWG24 0.559 0.559 0.511

BWG25 0.508 0.51 0.455

BWG26 0.457 0.46 0.405

BWG28 0.3759 0.36 0.321

BWG30 0.3150 0.30 0.255

Note:

Mm: Cross-sectional area of Galvanized iron wire.

SWG: Standard Wire Gauge, the standard from UK.

BWG: Birmingham Wire Gauge, It was originally used for iron wire, electric wire and textiles. It is a standard in the electrical industry, with an emphasis on electrical conductivity and flexibility. (commonly used in China)

AWG: It is a narmol standard in the USA.

There is no fixed conversion coefficient among the three sets of inspection standards.

The target product of this research is produced by Jinzhou Fangyi Metal Products Co., Ltd, sold by HEBEI YINGHANG TRADE CO.,LTD (LCA/EPD owner).
