EPD-IES-0028966:002

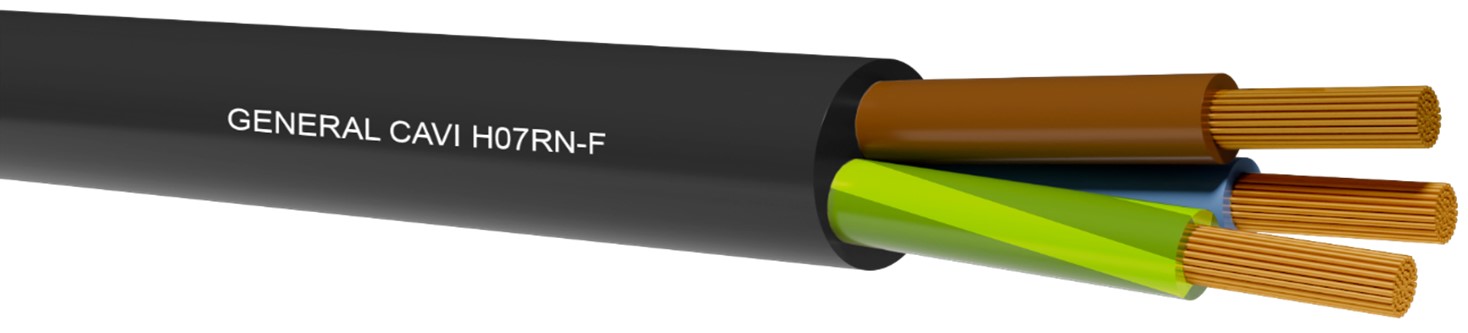

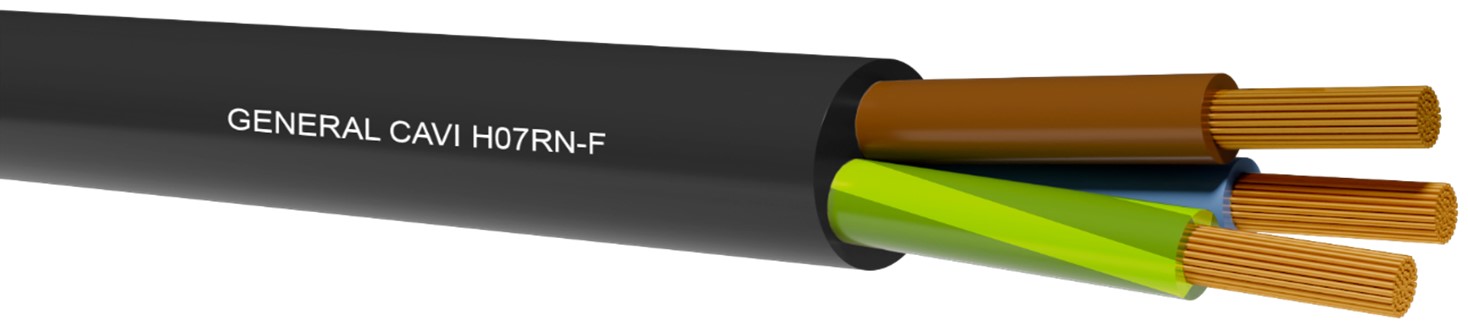

Low voltage flexible cables H07RN-F

General Cavi's H07RN-F family consists of harmonised flexible power cables, rubber-insulated and with special elastomeric sheathing, with class 5 flexible copper conductors, EI4 quality elastomeric compound insulation and EM2 type polychloroprene rubber outer sheath, which is flame retardant and resistant to water (AD8), oils and atmospheric agents.

The cables covered by this EPD (H07RN-F family) are classified according to PSR-0001-ed4-EN-2022 11 16 in the category ‘Wires and cables for power transmission’, i.e. electrical cables intended for power transmission by means of one or more conductors protected by insulation and an outer sheath, installed as permanent wiring inside buildings, underground, suspended, submarine, exposed, etc.

Registration number	EPD-IES-0028966:002
Status	Valid
Version date	2026-03-25
Validity date	2031-03-24
PCR	2024:06 Electronic and electric equipment, and electronic components (non-construction) (EN 50693) 1.0.1
c-PCR	2024:06-c-PCR-004 Wires, cables and accessories, except construction products (c-PCR under PCR 2024:06) 1.0.0
Standards conformance	ISO 14025:2006
Geographical scope	Global

Company name	GENERAL CAVI s.p.a.
Country	Italy
Contact	l.giuliani@generalcavi.com
Website	https://www.generalcavi.com/
LCA Practitioner	matteo.mazzotti@anova2.it

This EPD covers the H07RN-F family of homogeneous products from General Cavi S.p.A., consisting of 88 formations. For the purposes of the environmental declaration, the family has been treated as a coherent whole, as the products share the same function, the same harmonised technical standards, and similar materials and production processes, differing mainly in the relative quantities of the components (copper and polymeric/elastomeric materials) and the resulting linear weight. The reference product used as the basis for calculation and comparison is the H07RN-F 5G16mm2 cable.

H07RN-F cables in the following core configurations and cross-sectional sizes:

1X1,5 1X2,5 1X4 1X6 1X10 1X16 1X25 1X35 1X50 1X70 1X95 1X120 1X150 1X185 1X240 1X300 1X400 1X500 2X1 2X1,5 2X2,5 2X4 2X6 2X10 2X16 2X25 2X35 3G1 3G1,5 3G2,5 3G4 3G6 3G10 3G16 3G25 3G35 3G50 3G70 3G95 3X1,5 3X2,5 3X4 3X6 3X16 3X35 4G1 4G1,5 4G2,5 4G4 4G6 4G10 4G16 4G25 4G35 4G50 4G70 4G95 4G120 4G150 4G185 4G240 4X1,5 4X4 4X16 5G1 5G1,5 5G2,5 5G4 5G6 5G10 5G16 5G25 5G35 5G50 5G70 5G95 7G1,5 7G2,5 7G4 12G1,5 12G2,5 12G4 19G1,5 19G2,5 24G1,5 24G2,5 27G1,5 27G2,5
