EPD-IES-0029168:002
Polyfoam SS45 ECO
Polyfoam SS 45 ECO is a two-component, spray-applied polyurethane foam. Polyfoam SS 45 ECO is an HCFC (Hydrochlorofluorocarbon) blown polymeric MDI based system for producing rigid urethane foam. The system may be applied to substrates where the surface temperature is of the order of 10 - 50°C. Grades, adjusted in reactivity, are available for both cold and hot condition. Regarding its components, the MDI component is a dark brown colored, polymeric diphenyl methane di-isocyanate, while the polyol component is a low viscosity blend of polyols, hydrochlorofluorocarbon blowing agent, catalysts and surfactant.
General information
| EPD Owner | Henkel AG & Co. KGaA |
|---|---|
| Registration number | EPD-IES-0029168:002 |
| EPD type | EPD of a single product from a manufacturer/service provider |
| Status | Valid |
| Version date | 2026-05-12 |
| Validity date | 2031-05-11 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021, ISO 21930:2017 |
| Geographical scope | Global |
| An EPD may be updated or depublished if conditions change. This is the latest version of the EPD. | |
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 and ISO standard ISO 21930 serve as the core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | 2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1 |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
Verification
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
|---|---|
| Third-party verifier | Silvia Vilčeková (SILCERT, Ltd.) |
| Approved by | The International EPD® System |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.environdec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | Henkel AG & Co. KGaA |
|---|---|
| Contact person name | Massimo Collotta |
| Contact person e-mail | massimo.collotta@henkel.com |
| Organisation address | Henkelstraße 67 40589 Düsseldorf Germany |
| LCA Practitioner | Massimo Collotta, massimo.collotta@henkel.com Mariana Santos Queiroz, mariana.queiroz@henkel.com |
Description of the organisation of the EPD Owner
Henkel AG & Co. KGaA, commonly known as Henkel, is a German multinational chemical and consumer goods company headquartered in Düsseldorf, Germany. Henkel Adhesive Technologies Construction is a division of Henkel which offers, among others, a wide choice of waterproofing systems tailored to varied needs. This EPD is focused on the key components of Polyfoam MDI, a liquid, dark brown mixture, used in conjunction with polyol to produce rigid polyurethane foams. For more information, please visit: www.henkelpolybit.com
Organisation logo
Product information
| Product name | Polyfoam SS45 ECO |
|---|---|
| Product identification | Polyfoam SS45 ECO is a two-component spray-applied rigid polyurethane foam system based on polymeric MDI (Methylene Diphenyl Diisocyanate) and formulated polyols containing HCFC (Hydrochlorofluorocarbon) blowing agents. The MDI component is a dark brown colored, polymeric diphenyl methane di-isocyanate, while the polyol component is a low viscosity blend of polyols, hydrochlorofluorocarbon blowing agent, catalysts and surfactant. |
| Product description | Polyfoam SS 45 ECO is a two-component, spray-applied polyurethane foam. Polyfoam SS 45 ECO is an HCFC (Hydrochlorofluorocarbon) blown polymeric MDI based system for producing rigid urethane foam. The system may be applied to substrates where the surface temperature is of the order of 10 - 50°C. Grades, adjusted in reactivity, are available for both cold and hot condition. Regarding its components, the MDI component is a dark brown colored, polymeric diphenyl methane di-isocyanate, while the polyol component is a low viscosity blend of polyols, hydrochlorofluorocarbon blowing agent, catalysts and surfactant. |
| Technical purpose of product | Polyfoam SS 45 ECO is a two-component, spray-applied rigid polyurethane foam system based on polymeric MDI and formulated polyols containing HCFC blowing agents. The system reacts in situ to form a rigid, closed-cell insulation material and is available in grades adapted to different application conditions. This product is generally applied for roof spraying, flooring and wall insulation, as well as storage tank insulation. |
| Manufacturing or service provision description | The Polyfoam SS45 ECO is handled and packed at the Henkel facility in Umm Al Thuoob, United Arab Emirates. Once this product is composed by two units, each unit is received as single raw materials and kept in tightly sealed, moisture‑tight drums to prevent any contact with water. After receipt, the batches are subject to quality control checks and samples are taken for QC analysis. Once QC approval is obtained, the components are packed accordingly into designated drums and labeled with essential information. The chosen packaging type is the most representative in terms of sales volume and serves as the standard reference for other packaging options analyzed for this product. |
| Material properties | Volumetric mass density: 45 kg/m3 Volumetric mass density: 45 kg/m3 |
| Manufacturing site | Henkel Polybit Industry Umm Al Thuoob GMV5+3H6 Umm Al Thuoob United Arab Emirates |
| UN CPC code | 35110. Paints and varnishes and related products |
| Geographical scope | Global |
| Actual or technical lifespan | 60 year(s) |

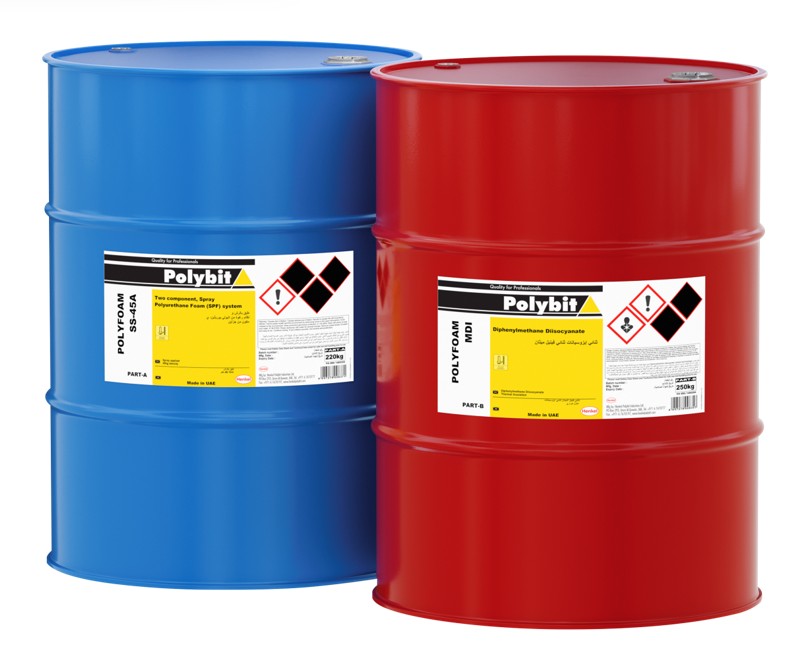

Product images
Content declaration
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
|---|
Product content
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit | Biogenic material kg CO2, eq./declared unit |
|---|---|---|---|---|---|
| Organics, nonvolatiles | 0.9841 | ||||
| Organics, volatiles | 0.0109 | ||||
| Water | 0.005 | ||||
| Total | 1 | 0 | 0 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||||
Packaging materials
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit | Biogenic material kg CO2, eq./declared unit |
|---|---|---|---|---|
| Wood | 0.075 | 7.39 | 0.0375 | 0.1375 |
| Plastic | 0.0005 | 0.04 | 0 | 0 |
| Metal | 0.124 | 12.21 | 0 | 0 |
| Total | 0.1995 | 19.64 | 0.0375 | 0.1375 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | Polyfoam SS45 ECO Mass: 1 kg |
| Conversion factor to mass | 1 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.11 database |
| LCA Software | SimaPro 10.3 |
| Additional information about the underlying LCA-based information | Simapro 10.3 |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | GWP 100,EN 15804. version: EF 3.1 |
| Technology description including background system | Polyfoam SS 45 ECO is a two-component, spray-applied polyurethane foam. The product is handled as a single raw material and is kept in tightly sealed, moisture tight drums to prevent contact with water. After receipt at the Henkel facility in Umm Al Thuoob (UAE), batches undergo quality control sampling; once approved, the product is packed into drums and labelled. The background system includes upstream supply and transport of the raw material(s) to the UAE site. For internal production, the Umm Al Thuoob plant electricity is reported as 100% renewable electricity in the primary data used for this study. |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | The quality of the relevant data used for the EPD in terms of its time, geography and technology representativeness using EN 15804:2012+A2:2019. The data used in this LCA study are of high quality and representative of the technologies, processes, and geographic location relevant to the production of Polyfoam SS45 ECO. The Reference year is 2025. |
|---|
Data quality assessment
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| A1 module | Collected Data | Henkel System | 2025 | 4% | |
| A2 module | Collected Data | Henkel System | 2025 | 7% | |
| A3 module | Collected Data | Henkel System | 2025 | 21% | |
| Total share of primary data, of GWP-GHG results for A1-A3 | 32% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
Electricity data
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Residual electricity mix on the market | |
| Energy sources | Hydro | 0% |
| Wind | 0% | |
| Solar | 100% | |
| Biomass | 0% | |
| Geothermal | 0% | |
| Waste | 0% | |
| Nuclear | 0% | |
| Natural gas | 0% | |
| Coal | 0% | |
| Oil | 0% | |
| Peat | 0% | |
| Other | 0% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 0.05 kg CO2 eq./kWh | |
System boundary
| Description of the system boundary | b) Cradle to gate with options, modules C1-C4, module D and with optional modules (A1-A3 + C + D and additional modules). |
|---|---|
| Excluded modules | Yes, there is an excluded module, or there are excluded modules |
| Justification for the omission of modules | No additional processes or raw materials are needed during the use phase of the assessed products. Therefore, modules B1 to B7 are not considered and have no impact on the environmental performance of the product. |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | X | X | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Global | Global | Middle East | Global | Global | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Global | Global | Global | Global | Global | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 32% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

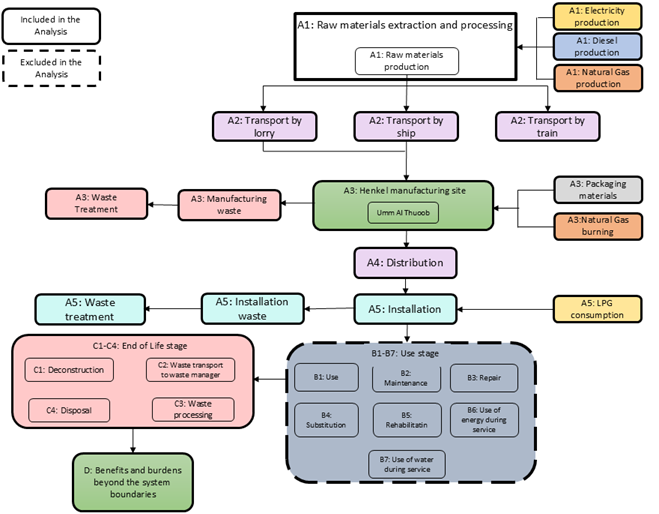

Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Polyfoam SS45 ECO |
|---|---|
| Description of the default scenario | Description of system boundaries: Cradle-to-gate with modules C1-C4, module D and optional modules A4 and A5, covering the modules of extraction and processing of raw materials (A1), their transportation to the production plant (A2), the manufacturing process (A3), transport to construction site (A4), installation (A5), end of life (C1-C4) and potential benefits and loads from the reuse and recycling of the products at its end of life (D). Product stage (A1-A3): Raw material supply (A1): this module considers the extraction and processing of raw materials used for the manufacture of the products. Transport of the raw materials (A2): this module consists of the transportation of all raw materials covered by module A1, from the extraction, production, and treatment site to the factory, considering the specific distances of each material supplier. Manufacturing of products (A3): this module refers to the production process of POLYFOAM SS45 ECO in the production plants. The product is received as a single raw material and is kept in tightly sealed, moisture tight drums to prevent any contact with water. After receipt, the batch is subject to quality control checks and samples are taken for QC analysis. Once QC approval is obtained, the product is packed into designated drums and labeled with essential information. This scenario also represents the 100% Landfill additional scenario. |
Module A4: Transport to the building site
| Explanatory name of the default scenario in module A4 | Downstream Transport |
|---|---|
| Brief description of the default scenario in module A4 | Transport from factory to customer |
| Description of the default scenario in module A4 | The Site-to-site transportation includes the transportation of the finished, packaged Polyfoam SS45 ECO from the production facility to the different customers site (A4). The transportation from the facility to customers is therefore estimated by range distances of 55 km based on market share of customer location. |
| Module A4 information | Value | Unit |
|---|---|---|
Distance | 55 | km |
Capacity utilization (including empty returns) | 100 | % |
Bulk density of transported products | 45 | kg/m3 |
Volume capacity utilization factor (factor: =1 or <1 or ≥1 for compressed or nested packaged products) | 1 | N/A |
| Fuel type and consumption of the vehicle | Diesel, 16-32 tons trucks with 34 L per 100 km fuel consumption, | N/A |
Module A5: Installation in the building
| Explanatory name of the default scenario in module A5 | Installation |
|---|---|
| Brief description of the default scenario in module A5 | Installation/processing of sold product |
| Description of the default scenario in module A5 | The product is applied manually using a high-pressure spray foam machine for the application of a two-component product such as Polyfoam SS45 ECO. In Module A5, no auxiliary materials are required and no water, or other resources are considered. However, due to the machine application, electricity consumption is required (0.25 kWh/kg product). No additional materials or auxiliary products are included beyond those already accounted for in the system. |
| Module A5 information | Value | Unit |
|---|---|---|
| Material Loss | 7 | % |
| Energy consumption during the installation (per kg of product) | 0.25 | kWh |
Module C: End-of-life
| Explanatory name of the default scenario in module C | End of life |
|---|---|
| Brief description of the default scenario in module C | End of life stage (C) |
| Description of the default scenario in module C | • Dismantling or demolition (C1): This module analyzes the environmental impacts associated with the deconstruction or dismantling of the polyurethane foam (POLYFOAM SS45 ECO) on a construction site after its useful life. Module C1 includes all processes and activities used on site for the deconstruction of the polyurethane foam. The consumption of energy and natural resources is negligible for deconstruction of the end of life product, as demolition of the polyurethane foam is assumed to be done manually. Thus, the impacts of demolition are assumed zero. • Transport to waste treatment site (C2): this module considers a default distance of 50 km (distance assumed in most EPD studies), between the construction site where the product was installed and the waste management facility (in this case landfill). • Waste treatment (C3): this module covers the process of processing construction and demolition waste prior to disposal. For this study, no specific pre treatment is modelled and the removed product waste is considered to be disposed of directly in landfill as the most conservative scenario. • Disposal (C4): this module includes the final disposal of waste that has not been destined for recovery or treatment processes. 100% of the product waste is disposed of in landfill after its useful life. Since the product is distributed among several countries, a conservative scenario has been considered to avoid miscalculating the impact of the end of life of the assessed products. |
| Module C information | Value | Unit |
|---|---|---|
| Waste collection process, specified by type kg collected mixed with demolition waste | 1 | kg |
| Waste disposal kg to landfill | 1 | kg |
| Distance to waste manager (km) | 50 | km |
Reference service life
| Description of the default scenario in reference service life | The reference service life of the Henkel Product is 60 years. |
|---|
| Reference service life information | Value | Unit |
|---|---|---|
Reference service life | 60 | year(s) |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Module D |
|---|---|
| Brief description of the default scenario in module D | Benefits and burdens beyond the boundaries of the system |
| Description of the default scenario in module D | Module D, considers the benefits and burdens linked to the processes of recovery, reuse or recycling of waste from the products under study at the end of their useful life, which could be part of the life cycle of a new product. Credits of the module D are 0 due to the 100% landfill of the product. |
Additional scenario 1
| Name of the additional scenario | Polyfoam SS45 ECO (100% recycling) |
|---|---|
| Description of the additional scenario | This represents a hypothetical scenario assuming 100% recycling, meaning the entire product is considered fully recycled at the end of its life cycle. Description of system boundaries: Cradle-to-gate with modules C1-C4, module D and optional modules A4 and A5, covering the modules of extraction and processing of raw materials (A1), their transportation to the production plant (A2), the manufacturing process (A3), transport to construction site (A4), installation (A5), end of life (C1-C4) and potential benefits and loads from the reuse and recycling of the products at its end of life (D). Product stage (A1-A3): Raw material supply (A1): this module considers the extraction and processing of raw materials used for the manufacture of the products. Transport of the raw materials (A2): this module consists of the transportation of all raw materials covered by module A1, from the extraction, production, and treatment site to the factory, considering the specific distances of each material supplier. Manufacturing of products (A3): this module refers to the production process of POLYFOAM SS45 ECO in the production plants. The product is received as a single raw material and is kept in tightly sealed, moisture tight drums to prevent any contact with water. After receipt, the batch is subject to quality control checks and samples are taken for QC analysis. Once QC approval is obtained, the product is packed into designated drums and labeled with essential information. This scenario also represents the 100% recycling of product. |
Module A4: Transport to the building site
| Description of the additional scenario in module A4 | The Site-to-site transportation includes the transportation of the finished, packaged Polyfoam SS45 ECO from the production facility to the different customers site (A4). The transportation from the facility to customers is therefore estimated by range distances of 55 km based on market share of customer location. |
|---|
| Module A4 information | Value | Unit |
|---|---|---|
Distance | 55 | km |
Capacity utilization (including empty returns) | 100 | % |
Bulk density of transported products | 45 | kg/m3 |
Volume capacity utilization factor (factor: =1 or <1 or ≥1 for compressed or nested packaged products) | 1 | N/A |
| Fuel type and consumption of the vehicle | Diesel, 16-32 tons trucks with 34 L per 100 km fuel consumption | N/A |
Module A5: Installation in the building
| Description of the additional scenario in module A5 | The product is applied manually using a high-pressure spray foam machine for the application of a two-component product such as Polyfoam SS45 ECO. In Module A5, no auxiliary materials are required and no water, or other resources are considered. However, due to the machine application, electricity consumption is required (0.25 kWh/kg product). No additional materials or auxiliary products are included beyond those already accounted for in the system. |
|---|
| Module A5 information | Value | Unit |
|---|---|---|
| Material Loss | 7 | % |
| Energy consumption during the installation (per kg of product) | 0.25 | kWh |
Module C: End-of-life
| Description of the additional scenario in module C | Dismantling or demolition (C1): This module analyzes the environmental impacts associated with the deconstruction or dismantling of the bitumen membrane on a construction site after their useful life. Module C1 includes all processes and activities used on site for the deconstruction of the bitumen membrane. The consumption of energy and natural resources is negligible for deconstruction of the end-of-life product, as demolition of bitumen membrane roofing is assumed to be done manually. Thus the impacts of demolition are assumed zero. - Transport to waste treatment site (C2): this module considers a default distance of 50 km (distance assumed in most EPD studies, between the construction site where the product was installed and the waste management facility (in this case landfill). - Waste treatment (C3): this module covers the process of processing construction and demolition waste through crushing, a fundamental procedure in sustainable waste management in the construction sector. This stage involves reducing the volume of waste through a crushing process, which has a significant impact on volume reduction and preparing the waste for further management and reuse. All the products waste has been considered to be disposed of in the landfill as it is the most conservative scenario. - Disposal (C4): This module covers the final disposal of any waste that is not directed to recovery or treatment processes. In the 100% recycling scenario, all product waste at end of life is assumed to be collected for recycling. Consequently, no direct landfill disposal of the product is modelled. Any potential disposal of minor recycling residues (e.g., sorting or processing rejects) is considered outside the scope of the product waste stream or assumed to be negligible. Given distribution across multiple countries, a conservative and harmonized end-of-life assumption has been applied to avoid underestimation of impacts due to differences in national waste management practices. |
|---|
| Module C information | Value | Unit |
|---|---|---|
| Waste collection process, specified by type kg collected mixed with demolition waste | 1 | kg |
| Waste disposal kg to Recycling/Reuse | 1 | kg |
| Distance to waste manager (km) | 50 | km |
Reference service life
| Description of the additional scenario in reference service life | The reference service life of the Henkel Product is 60 years. |
|---|
| Reference service life information | Value | Unit |
|---|---|---|
Reference service life | 60 | year(s) |
Module D: Beyond product life cycle
| Description of the additional scenario in module D | Module D, considers the benefits and burdens linked to the processes of recovery, reuse or recycling of waste from the products under study at the end of their useful life, which could be part of the life cycle of a new product. The recycling of the product fully substitutes the manufacture of an equivalent new product; therefore, the avoided burdens of modules A1–A3 are reported as credits in Module D. |
|---|
Additional scenario 2
| Name of the additional scenario | Polyfoam SS45 ECO (100% Reuse) |
|---|---|
| Description of the additional scenario | This represents a hypothetical scenario assuming 100% reuse, meaning the entire product is considered fully recycled at the end of its life cycle. Description of system boundaries: Cradle-to-gate with modules C1-C4, module D and optional modules A4 and A5, covering the modules of extraction and processing of raw materials (A1), their transportation to the production plant (A2), the manufacturing process (A3), transport to construction site (A4), installation (A5), end of life (C1-C4) and potential benefits and loads from the reuse and recycling of the products at its end of life (D). Product stage (A1-A3): Raw material supply (A1): this module considers the extraction and processing of raw materials used for the manufacture of the products. Transport of the raw materials (A2): this module consists of the transportation of all raw materials covered by module A1, from the extraction, production, and treatment site to the factory, considering the specific distances of each material supplier. Manufacturing of products (A3): this module refers to the production process of POLYFOAM SS45 ECO in the production plants. The product is received as a single raw material and is kept in tightly sealed, moisture tight drums to prevent any contact with water. After receipt, the batch is subject to quality control checks and samples are taken for QC analysis. Once QC approval is obtained, the product is packed into designated drums and labeled with essential information. This scenario also represents the 100% reuse of product. |
Module A4: Transport to the building site
| Description of the additional scenario in module A4 | The Site-to-site transportation includes the transportation of the finished, packaged Polyfoam SS45 ECO from the production facility to the different customers site (A4). The transportation from the facility to customers is therefore estimated by range distances of 55 km based on market share of customer location. |
|---|
| Module A4 information | Value | Unit |
|---|---|---|
Distance | 55 | km |
Capacity utilization (including empty returns) | 100 | % |
Bulk density of transported products | 45 | kg/m3 |
Volume capacity utilization factor (factor: =1 or <1 or ≥1 for compressed or nested packaged products) | 1 | N/A |
| Fuel type and consumption of the vehicle | Diesel, 16-32 tons trucks with 34 L per 100 km fuel consumption | N/A |
Module A5: Installation in the building
| Description of the additional scenario in module A5 | The product is applied manually using a high-pressure spray foam machine for the application of a two-component product such as Polyfoam SS45 ECO. In Module A5, no auxiliary materials are required and no water, or other resources are considered. However, due to the machine application, electricity consumption is required (0.25 kWh/kg product). No additional materials or auxiliary products are included beyond those already accounted for in the system. |
|---|
| Module A5 information | Value | Unit |
|---|---|---|
| Material loss | 7 | % |
| Energy consumption during the installation (per kg of product) | 0.25 | kWh |
Module C: End-of-life
| Description of the additional scenario in module C | - Dismantling or demolition (C1): This module analyzes the environmental impacts associated with the deconstruction or dismantling of the bitumen membrane on a construction site after their useful life. Module C1 includes all processes and activities used on site for the deconstruction of the bitumen membrane. The consumption of energy and natural resources is negligible for deconstruction of the end-of-life product, as demolition of bitumen membrane roofing is assumed to be done manually. Thus the impacts of demolition are assumed zero. - Transport to waste treatment site (C2): this module considers a default distance of 50 km (distance assumed in most EPD studies, between the construction site where the product was installed and the waste management facility (in this case landfill). - Waste treatment (C3): this module covers the process of processing construction and demolition waste through crushing, a fundamental procedure in sustainable waste management in the construction sector. This stage involves reducing the volume of waste through a crushing process, which has a significant impact on volume reduction and preparing the waste for further management and reuse. All the products waste has been considered to be disposed of in the landfill as it is the most conservative scenario. - Disposal (C4): This module covers the final disposal of any waste that is not directed to recovery or treatment processes. In the 100% recycling scenario, all product waste at end of life is assumed to be collected for recycling. Consequently, no direct landfill disposal of the product is modelled. Any potential disposal of minor recycling residues (e.g., sorting or processing rejects) is considered outside the scope of the product waste stream or assumed to be negligible. Given distribution across multiple countries, a conservative and harmonized end-of-life assumption has been applied to avoid underestimation of impacts due to differences in national waste management practices. |
|---|
| Module C information | Value | Unit |
|---|---|---|
| Waste collection process, specified by type kg collected mixed with demolition waste | 1 | kg |
| Waste disposal kg to Recycling/reuse | 1 | kg |
| Distance to waste manager (km) | 50 | km |
Reference service life
| Description of the additional scenario in reference service life | The reference service life of the Henkel Product is 60 years. |
|---|
| Reference service life information | Value | Unit |
|---|---|---|
Reference service life | 60 | year(s) |
Module D: Beyond product life cycle
| Description of the additional scenario in module D | Module D, considers the benefits and burdens linked to the processes of recovery, reuse or recycling of waste from the products under study at the end of their useful life, which could be part of the life cycle of a new product. The recycling of the product fully substitutes the manufacture of an equivalent new product; therefore, the avoided burdens of modules A1–A3 are reported as credits in Module D. |
|---|
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 5.53E+0 | 8.86E-3 | 5.49E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 8.06E-3 | 0.00E+0 | 2.73E-3 | 0.00E+0 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 5.55E+0 | 8.86E-3 | 5.10E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.38E-7 | 0.00E+0 | 2.53E-7 | 0.00E+0 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -2.99E-2 | 5.92E-7 | 3.82E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 4.22E-7 | 0.00E+0 | 1.38E-7 | 0.00E+0 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 1.11E-2 | 4.64E-7 | 7.64E-4 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 8.06E-3 | 0.00E+0 | 2.73E-3 | 0.00E+0 |
| Ozone depletion | ODP | kg CFC-11 eq. | 5.32E-7 | 1.10E-10 | 3.95E-8 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 9.98E-11 | 0.00E+0 | 3.92E-11 | 0.00E+0 |
| Acidification | AP | mol H+ eq. | 2.39E-2 | 2.95E-5 | 1.71E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.68E-5 | 0.00E+0 | 2.46E-5 | 0.00E+0 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 5.96E-4 | 6.11E-8 | 4.15E-5 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.55E-8 | 0.00E+0 | 8.97E-9 | 0.00E+0 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 7.06E-3 | 1.10E-5 | 5.05E-4 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.00E-5 | 0.00E+0 | 1.12E-5 | 0.00E+0 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 5.08E-2 | 1.21E-4 | 3.69E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.10E-4 | 0.00E+0 | 1.23E-4 | 0.00E+0 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 1.98E-2 | 4.17E-5 | 1.62E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.79E-5 | 0.00E+0 | 3.72E-5 | 0.00E+0 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 4.11E-5 | 7.21E-10 | 2.84E-6 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 6.55E-10 | 0.00E+0 | 9.08E-11 | 0.00E+0 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 9.35E+1 | 1.16E-1 | 8.64E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.06E-1 | 0.00E+0 | 3.49E-2 | 0.00E+0 |
| Water use | WDP1 | m3 world eq. deprived | 1.69E+0 | 1.53E-4 | 1.22E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.39E-4 | 0.00E+0 | 3.05E-5 | 0.00E+0 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 5.57E+0 | 8.86E-3 | 5.12E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 8.06E-3 | 0.00E+0 | 2.73E-3 | 0.00E+0 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Additional voluntary environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Particulate matter emissions | PM | Disease incidence | 2.95E-7 | 8.66E-10 | 2.06E-8 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.87E-10 | 0.00E+0 | 1.01E-9 | 0.00E+0 |
| Ionizing radiation - human health | IRP1 | kBq U235 eq. | 8.35E-2 | 4.81E-5 | 9.42E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 4.38E-5 | 0.00E+0 | 3.56E-5 | 0.00E+0 |
| Eco-toxicity - freshwater | ETP-fw2 | CTUe | 1.60E+2 | 2.82E-2 | 1.11E+1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.56E-2 | 0.00E+0 | 1.11E-2 | 0.00E+0 |
| Human toxicity - cancer effects | HTP-c2 | CTUh | 7.49E-9 | 1.86E-12 | 5.25E-10 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.69E-12 | 0.00E+0 | 1.13E-12 | 0.00E+0 |
| Human toxicity - non-cancer effects | HTP-nc2 | CTUh | 5.19E-8 | 9.50E-11 | 3.72E-9 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 8.64E-11 | 0.00E+0 | 2.54E-11 | 0.00E+0 |
| Land-use related impacts/soil quality | SQP2 | Dimensionless | 1.74E+1 | 9.03E-2 | 1.19E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 8.21E-2 | 0.00E+0 | 3.01E-1 | 0.00E+0 |
| Acronyms | PM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator. | ||||||||||||||||
| Disclaimer 2 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator. | ||||||||||||||||
Additional voluntary environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| High-Level radioactive waste | - | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Intermediate/low-level radioactive waste | - | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Global warming potential | (GWP 100) | kg CO2 eq | 5.98E+0 | 4.67E-2 | 9.74E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 9.93E-3 | 0.00E+0 | 6.11E-3 | 0.00E+0 |
| Ozone depletion potential | (ODP) | kg CFC-11 eq | 1.43E-7 | 6.55E-10 | 3.41E-10 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.39E-10 | 0.00E+0 | 1.84E-10 | 0.00E+0 |
| Eutrophication potential | (EP) | kg N eq | 3.10E-3 | 3.25E-5 | 4.26E-6 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 6.91E-6 | 0.00E+0 | 8.96E-6 | 0.00E+0 |
| Acidification potetential | (AP) | kg SO2 eq | 1.85E-2 | 1.63E-4 | 4.05E-5 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.47E-5 | 0.00E+0 | 3.96E-5 | 0.00E+0 |
| Photochemical o0idant creation potential | (POCP) | kg O3 eq | 2.83E-1 | 3.83E-3 | 4.93E-4 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 8.15E-4 | 0.00E+0 | 1.06E-3 | 0.00E+0 |
| Acronyms | |||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Justification for inclusion | Additional optional indicators |
|---|
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 3.38E+0 | 2.13E-3 | 1.71E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.94E-3 | 0.00E+0 | 1.43E-3 | 0.00E+0 |
| PERM | MJ, net calorific value | 1.40E+0 | 0.00E+0 | -1.40E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PERT | MJ, net calorific value | 4.78E+0 | 2.13E-3 | 3.06E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.94E-3 | 0.00E+0 | 1.43E-3 | 0.00E+0 |
| PENRE | MJ, net calorific value | 1.08E+2 | 1.63E-1 | 9.88E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.49E-1 | 0.00E+0 | 1.63E-1 | 0.00E+0 |
| PENRM | MJ, net calorific value | 1.97E-2 | 0.00E+0 | -1.97E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PENRT | MJ, net calorific value | 1.08E+2 | 1.63E-1 | 9.86E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.49E-1 | 0.00E+0 | 1.63E-1 | 0.00E+0 |
| SM | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 4.92E-2 | 2.14E-5 | 3.61E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.95E-5 | 0.00E+0 | 1.59E-4 | 0.00E+0 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 5.53E-3 | 4.17E-6 | 6.32E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.79E-6 | 0.00E+0 | 2.24E-6 | 0.00E+0 |
| NHWD | kg | 3.89E-1 | 7.13E-3 | 4.27E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 6.48E-3 | 0.00E+0 | 1.00E+0 | 0.00E+0 |
| RWD | kg | 5.38E-5 | 3.03E-8 | 6.67E-6 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.75E-8 | 0.00E+0 | 2.24E-8 | 0.00E+0 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MER | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Results for additional scenarios for modules A4-C4
| Additional scenario | Polyfoam SS45 ECO (100% recycling) |
|---|---|
| Description of the scenario/method | This scenario results are valid for both 100% reuse and 100% recycling scenarios. |
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Global warming potential - total (GWP-total) | GWP-fossil | kg CO2 eq. | 5.55E+0 | 8.86E-3 | 5.10E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.01E-2 | 4.40E-3 | -6.08E+0 | -4.59E-1 |
| Global warming potential - fossil fuels (GWP-fossil) | GWP-biogenic | kg CO2 eq. | -2.99E-2 | 5.92E-7 | 3.82E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.01E-2 | 4.40E-3 | -6.06E+0 | -4.58E-1 |
| Global warming potential - biogenic (GWP-biogenic) | GWP-luluc | kg CO2 eq. | 1.11E-2 | 4.64E-7 | 7.64E-4 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.52E-6 | 4.89E-7 | -9.14E-3 | -8.80E-4 |
| Global warming potential - land use and land use change (GWP-luluc) | GWP-Total | kg CO2 eq. | 5.53E+0 | 8.86E-3 | 5.49E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 4.54E-6 | 4.50E-7 | -1.20E-2 | -2.06E-4 |
| Depletion potential of the stratospheric ozone layer (ODP) | ODP | kg CFC 11 eq. | 5.32E-7 | 1.10E-10 | 3.95E-8 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.32E-10 | 6.53E-11 | -5.40E-7 | -6.03E-9 |
| Acidification potential, accumulated exceedance (AP) | AP | mol H+ eq. | 2.39E-2 | 2.95E-5 | 1.71E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.84E-5 | 3.93E-5 | -2.89E-2 | -1.23E-3 |
| Eutrophication potential - freshwater (EP-freshwater) | EP-freshwater | kg P eq. | 5.96E-4 | 6.11E-8 | 4.15E-5 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.25E-7 | 1.54E-8 | -6.32E-4 | -7.60E-6 |
| Eutrophication potential - marine (EP-marine) | EP-marine | kg N eq. | 7.06E-3 | 1.10E-5 | 5.05E-4 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.28E-5 | 1.83E-5 | -7.75E-3 | -3.16E-4 |
| Eutrophication potential - terrestrial (EP-terrestrial) | EP-terrestrial | mol N eq. | 5.08E-2 | 1.21E-4 | 3.69E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.42E-4 | 2.00E-4 | -5.92E-2 | -3.59E-3 |
| Photochemical ozone creation potential (POCP) | POCP | kg NMVOC eq. | 1.98E-2 | 4.17E-5 | 1.62E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.21E-5 | 5.99E-5 | -2.24E-2 | -1.25E-3 |
| Abiotic depletion potential - non-fossil resources (ADPE) | ADP-minerals and metals1 | kg Sb eq. | 4.11E-5 | 7.21E-10 | 2.84E-6 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.31E-8 | 1.57E-9 | -8.57E-5 | -1.39E-6 |
| Abiotic depletion potential - fossil resources (ADPF) | ADP-fossil1 | MJ | 9.35E+1 | 1.16E-1 | 8.64E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.40E-1 | 5.73E-2 | -1.00E+2 | -4.04E+0 |
| Water (user) deprivation potential (WDP) | WDP1 | m3 | 1.69E+0 | 1.53E-4 | 1.22E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 6.48E-4 | 1.22E-4 | -1.86E+0 | -8.21E-2 |
| Global warming potential - total (GWP-GHG) | GWP-GHG | kg CO2 eq. | 5.57E+0 | 8.86E-3 | 5.12E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.00E-2 | 4.39E-3 | -5.90E+0 | -3.98E-1 |
| Acronyms | |||||||||||||||||
| Disclaimers | |||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Abbreviations
EN European Norm (Standard)
EPD Environmental Product Declaration
EF Environmental Footprint
GPI General Programme Instructions
ISO International Organization for Standardization
LCA Life Cycle Assessment
PCR Product Category Rules
c-PCR Complementary Product Category Rules
CEN European Committee for Standardization
CLC Co-location centre
CPC Central product classification
GHS Globally harmonized system of classification and labelling of chemicals
GRI Global Reporting Initiative
Environmental Impact Indicators (EN 15804)
GHG Greenhouse gas
GWP Global Warming Potential (kg CO₂ eq.)
GWP-fossil Global Warming Potential from fossil sources (kg CO₂ eq.)
GWP-biogenic Global Warming Potential from biogenic sources (kg CO₂ eq.)
GWP-luluc Global Warming Potential from land use and land use change (kg CO₂ eq.)
GWP-total Total Global Warming Potential (kg CO₂ eq.)
GWP-GHG Global Warming Potential for greenhouse gases (kg CO₂ eq.)
ODP Ozone Depletion Potential (kg CFC-11 eq.)
AP Acidification Potential (mol H⁺ eq.)
EP Eutrophication Potential
EP-freshwater Freshwater eutrophication potential (kg P eq.)
EP-marine Marine eutrophication potential (kg N eq.)
EP-terrestrial Terrestrial eutrophication potential (mol N eq.)
POCP Photochemical Ozone Creation Potential (kg NMVOC eq.)
ADP Abiotic Depletion Potential
ADP-minerals&metals Abiotic depletion potential for non-fossil resources (kg Sb eq.)
ADP-fossil Abiotic depletion potential for fossil resources (MJ)
WDP Water Deprivation Potential (m³)
Resource Use Indicators
PERE Use of renewable primary energy excluding renewable primary energy resources used as raw materials (MJ)
PERM Use of renewable primary energy resources used as raw materials (MJ)
PERT Total use of renewable primary energy resources (MJ)
PENRE Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials (MJ)
PENRM Use of non-renewable primary energy resources used as raw materials (MJ)
PENRT Total use of non-renewable primary energy resources (MJ)
SM Use of secondary material (kg)
RSF Use of renewable secondary fuels (MJ)
NRSF Use of non-renewable secondary fuels (MJ)
FW Use of net fresh water (m³)
Waste Indicators
HW Hazardous Waste (disposed) (kg)
NHW Non-Hazardous Waste (disposed) (kg)
RW Radioactive Waste (disposed) (kg)
Output Flow Indicators
CFR Components for Reuse (kg)
MR Material for Recycling (kg)
MER Materials for Energy Recovery (kg)
EEE Exported Energy, Electricity (MJ)
EET Exported Energy, Thermal (MJ)
Lifecycle Stages / Modules
A1 Raw material supply
A2 Transport
A3 Manufacturing
A4 Transport to site
A5 Construction/Installation
B1 Use
B2 Maintenance
B3 Repair
B4 Replacement
B5 Refurbishment
B6 Operational energy use
B7 Operational water use
C1 Deconstruction/Demolition
C2 Transport to waste processing
C3 Waste processing
C4 Disposal
D Reuse-Recovery-Recycling potential
Other Relevant Terms
SVHC Substances of Very High Concern
EC No. European Community Number
CAS No. Chemical Abstracts Service Number
MJ Megajoule
kg Kilogram
m³ Cubic Meter
NMVOC Non-Methane Volatile Organic Compounds
Sb eq. Antimony Equivalents
P eq. Phosphorus Equivalents
N eq. Nitrogen Equivalents
CFC-11 eq. Chlorofluorocarbon-11 Equivalents
CO₂ eq. Carbon Dioxide Equivalents
kg C Kilograms of Carbon
kg CO₂ eq. Kilograms of Carbon Dioxide Equivalent
ND Not Declared
References
General Programme Instructions of the International EPD® System. Version 5.0.1.
Product Category Rules PCR 2019:14 Construction products, version 2.0.1 Published on 2025.04.07 valid until: 2030.04.07, based on the European standard UNI-EN 15804:2012+A2:2020.
UNI-EN ISO 14040:2006 – Environmental management – Life Cycle Assessment – Principles and framework.
UNI-EN ISO 14044:2006 – Environmental management – Life Cycle Assessment – Requirements.
UNI-EN ISO 14025:2006- Labels and environmental declarations.
ISO/TR 14047: 2003 – Environmental management – Life Cycle Assessment – LCI application examples.
ISO/TS 14048: 2003 – Environmental management – Life Cycle Assessment – Data inventory.
ISO/TR 14049: 2000 – Environmental management – Life Cycle Assessment – Examples of application of objectives and scope and inventory analysis.
UNI-EN 15804:2012+A2: Sustainability in construction. Product environmental statements. Commodity category rules for construction products.
ISO (2017): ISO 21930:2017, Sustainability in buildings and civil engineering works -- Core rules for environmental product declarations of construction products and services
Version history
001, 2026-05-12
