SHUNTOPAC® 20-200 KV/VK/VÅV/VÅK/VÅVK/UX DN20-50 Green Line

TTM Energiprodukter has a wide range of prefabricated shunt units for heating, cooling and heat recovery, as well as combined shunt units that combine two or more of these functions. By choosing a Shuntopac shunt unit, you get a correctly dimensioned and well-functioning shunt circuit in your system.

In many buildings the ventilation system is used both for heating and cooling and in many cases together with heat recovery. Instead of having two separate ventilation units it is much more efficient to combine them into one unit. Together with combined shunt unit that supports the ventilation system with either heat or cold the number of necessary components reduces by half and the free space can be used in a more efficient way.

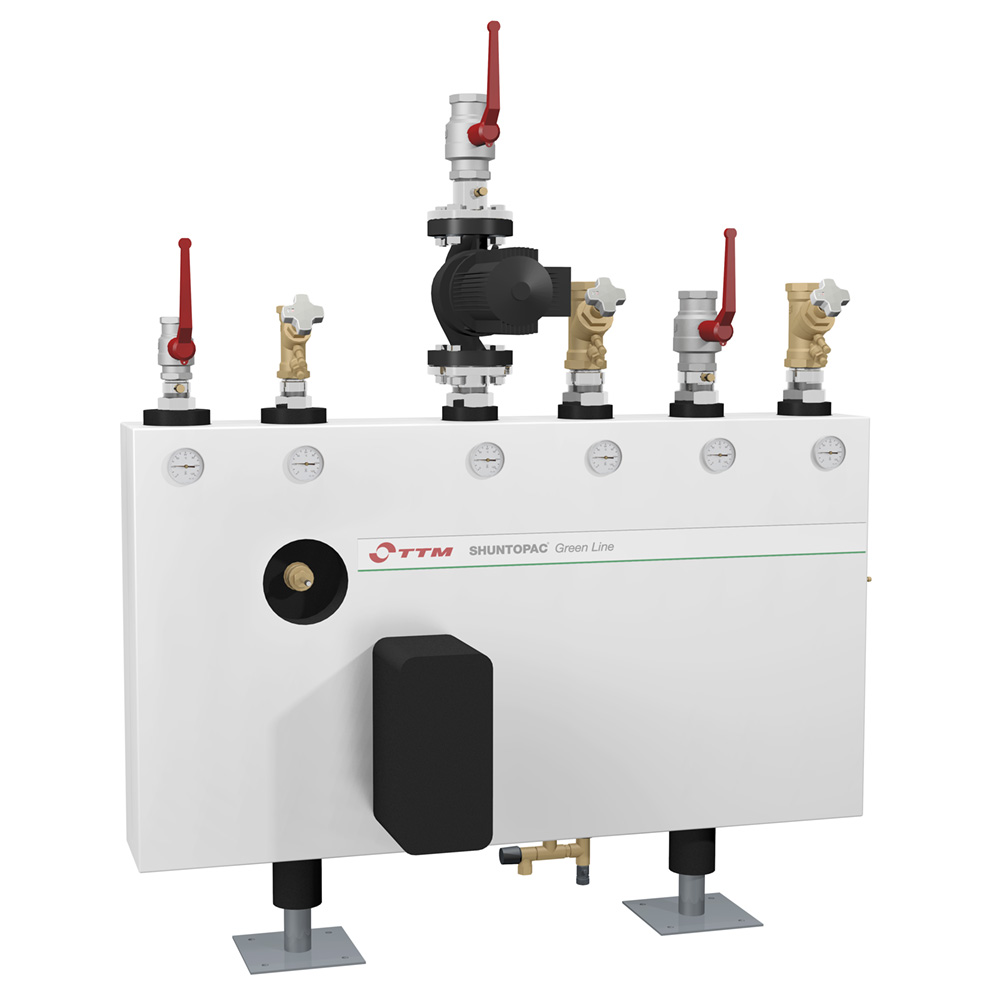

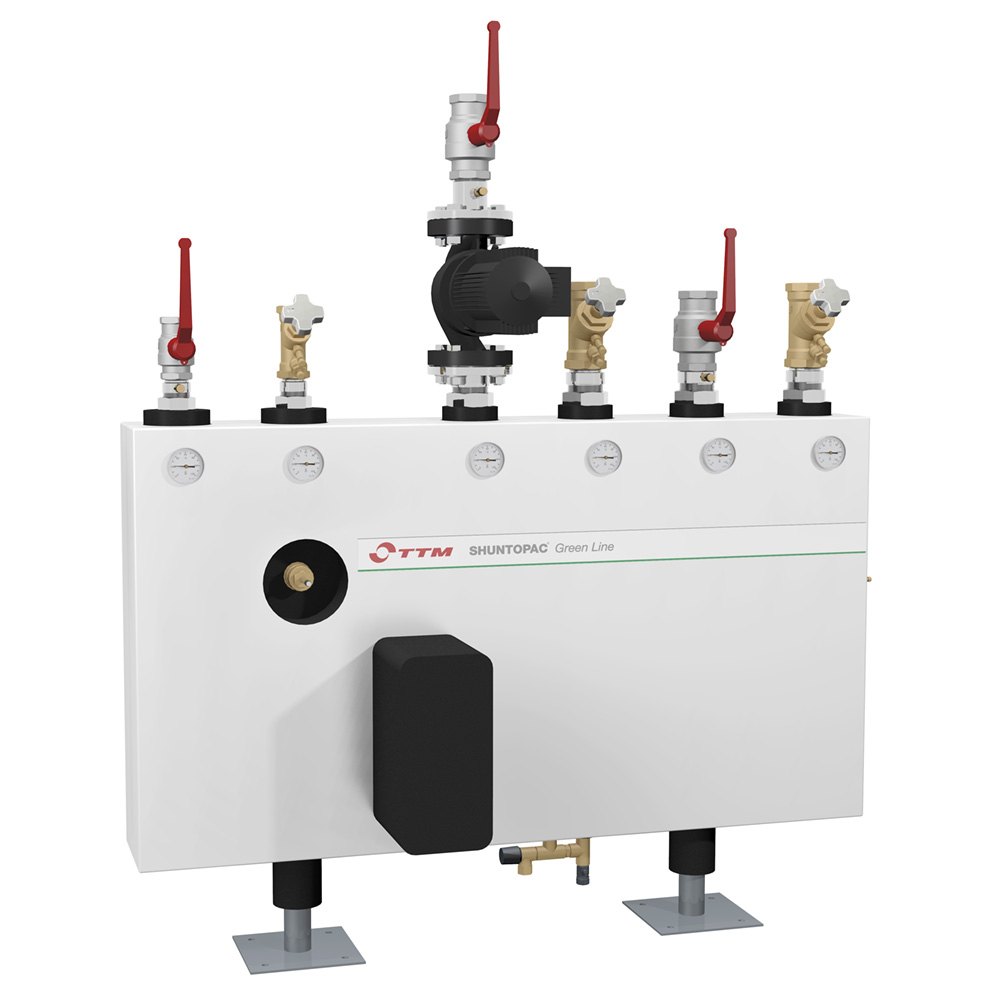

TTM Shuntopac® 20-200 KV Green Line is a combined shunt unit for both cooling and heating to a ventilation system. The cooling heat exchanger is used to transfer both cooling and heating to the ventilation air. The traditional heat exchanger is removed as heat is transferred via a plate exchanger in the shunt unit’s secondary circuit.

TTM Shuntopac® 20-200 KV Green Line is supplied with a fire and corrosion-proof housing in aluzinc sheet. Standard insulation is NH/ArmaFlex Smart.
