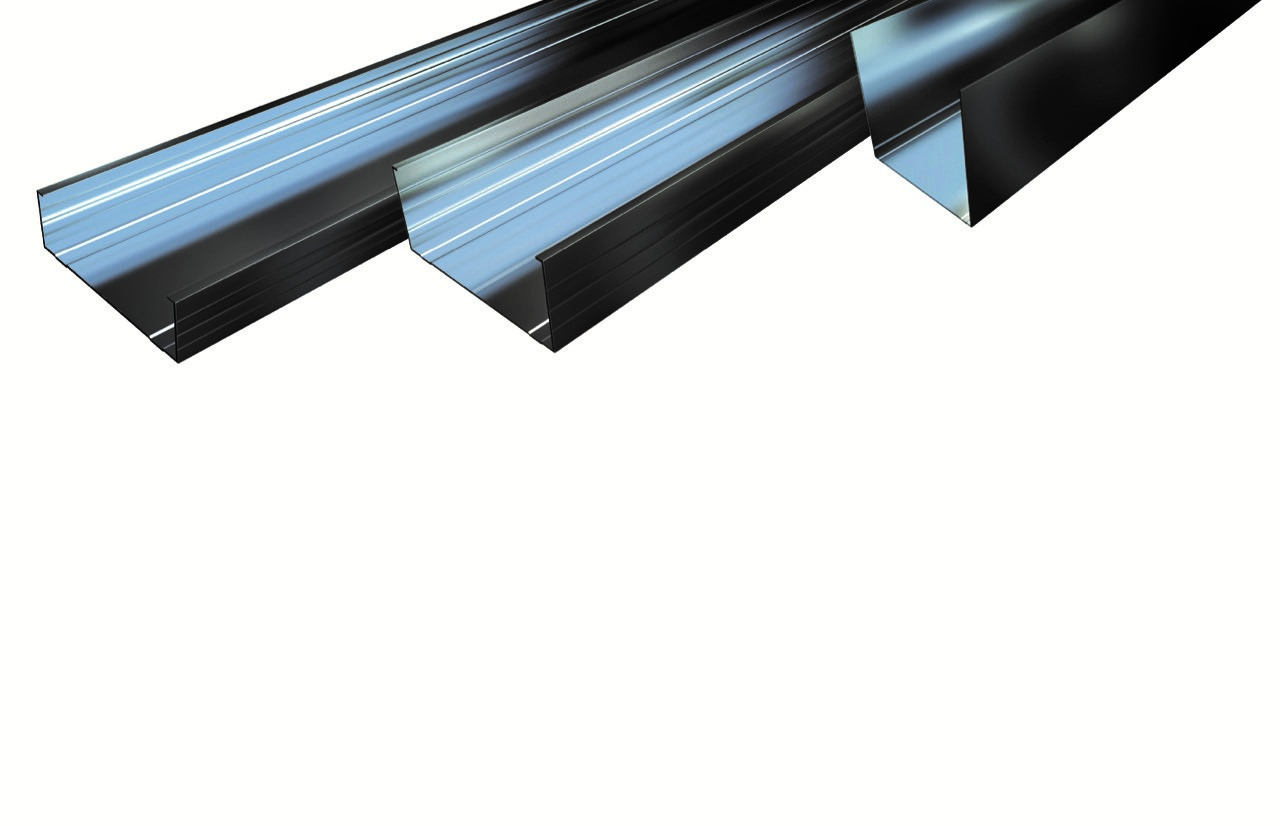

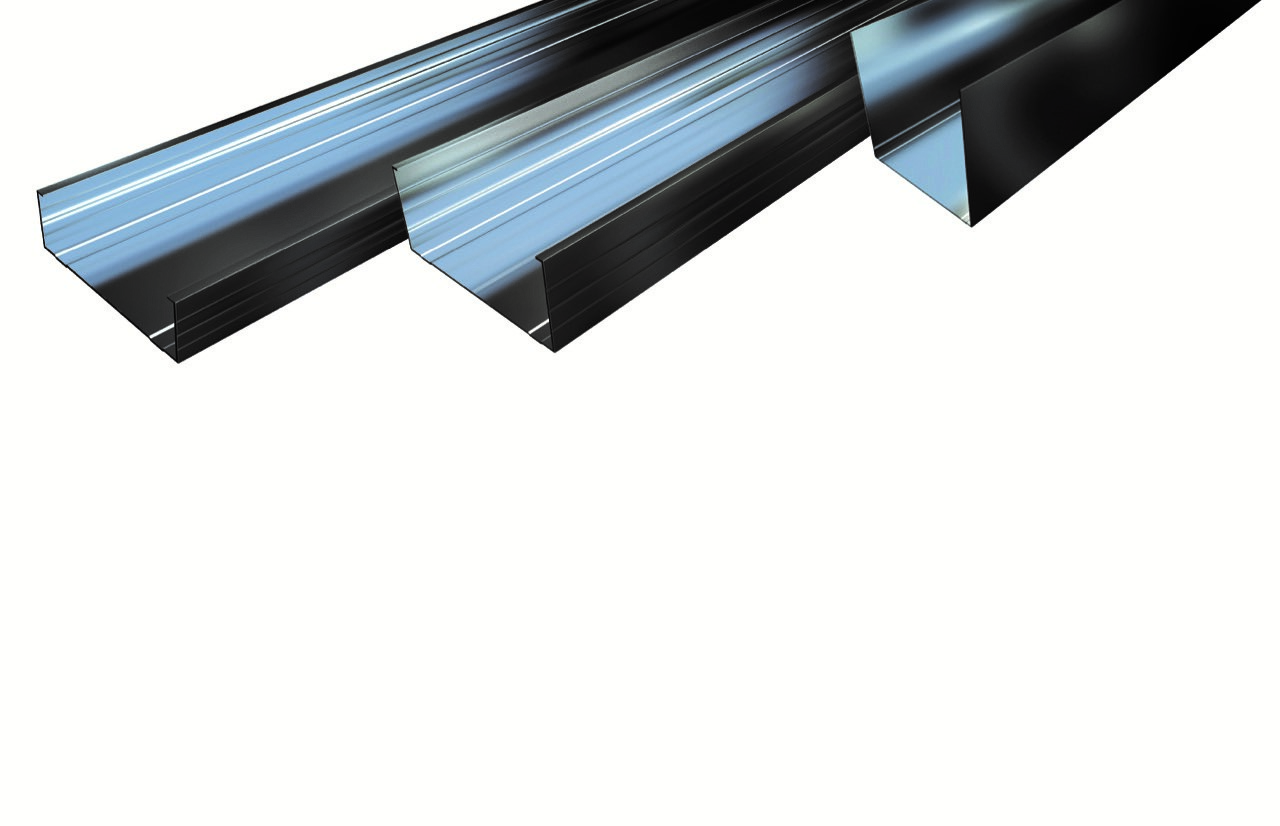

Knauf Steel Profiles
Product information
Knauf steel profiles are used to be applied as part assemblies in internal walls and
ceiling constructions. Typical applications are residential buildings,
industrial and commercial buildings, sports facilities, schools and hospitals. Knauf
profiles are made of hot-dip galvanized sheet steel in conformity with EN 10346
cut and bent to attain the right dimensions and characteristics. Steel profiles
analysed are available with zinc (Z) or zinc-aluminium-magnesium (MgZ) based
coatings (only except for the profile Z U 15x30 which has only zinc coating) in
order to provide a good level of protection against corrosion. The presence of
magnesium in the coating promotes the formation of compact corrosion products
highly stable over time, thereby substantially reducing coating consumption
dynamics and enhancing edge protection. The profiles are available in
thicknesses range from 0.6 mm to 1 mm. Thickness of studied products is 0.6 mm.
Products
Prof Z C Plus 50x27 mm
Prof Z U 27x30 mm
Prof Z C 75x50 mm
Prof Z U 75x40 mm
Prof Z C 50x50 mm
