EPD-IES-0025543:003
Vitocal 200-A PRO AA-BB 42 R410 from G.I. Industrial Holding S.p.A
Product description:
The high efficiency Heat Pumps of the Vitocal 200-A PRO AA-BB 26-42-R410 series, with R410A refrigerant, are designed to satisfy the needs of small and medium domestic and service sector environments: these units can be combined with Fan Coil units or even with an intermediate heat exchanger for process-cooling applications. The range consists of 4 sizes covering heating capacity from 29 to 48 kW. Among the series, the Vitocal 200-A PRO AA-BB 42-R410 is the most representative because the most sold (‘most product volume’).
The selected reference product included in this EPD is highlighted in bold in the table below. All products refer to the standard configuration.
General information
| EPD Owner | G.I. Industrial Holding S.p.A. |
|---|---|
| Registration number | EPD-IES-0025543:003 |
| PCR | 2019:14 Construction products (EN 15804+A2) 2.0.1 |
| Status | Valid |
| Publication date | 2025-10-02 |
| Valid until | 2030-09-23 |
| EN 15804 compliant | Yes |
| Geographical scope | Europe |
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | PCR 2019:14 Construction products (EN 15804+A2) (2.0.1) |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
Verification
| LCA accountability | Francesca Zoderer, amministrazione@tangram.bz.it, G.I. Industrial Holding S.p.A. |
|---|---|
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
| Third-party verifier | SGS ICS Italia Srl |
| Accredited by | Accredia |
| Accredited certification body address | Italy |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | G.I. Industrial Holding S.p.A. |
|---|---|
| Contact person name | Kristian Fedri |
| Contact person e-mail | k.fedri@gind.it |
| Organisation address | Italy Latisana 33053 Via G. Agnelli 7 |
Description of the organisation of the EPD Owner
Over 40 years of experience and dynamic all-Italian business management are the distinctive features and driving force behind G.I. INDUSTRIAL HOLDING, a G.I. HOLDING multinational Group company. One of the core values of G.I. INDUSTRIAL HOLDING is the ability to offer custom solutions for highly specific requirements, especially in large installations; combining consolidated experience of centralized hydronic air-conditioning, process cooling, close control and air treatment, with the advanced technology of its own plants and innovative research and development solutions. G.I. INDUSTRIAL HOLDING engineers, builds and distributes a complete range of machines dedicated to the specific requirements of individual markets. G.I. INDUSTRIAL HOLDING is present throughout Europe, Africa, Middle East and Asia Pacific. In Italy, G.I. INDUSTRIAL HOLDING relies on 30 sales offices and 45 technical support centers, through which it offers comprehensive pre- and after-sales services ranging from customized system design and ideal unit selection to start-up assistance and technical support. The international market is managed by 4 sales offices located in Italy, United Arab Emirates and Malaysia, which support over 70 distributors worldwide. This way the company faces the everyday challenges of the market with the certainty of supplying specific and reliable solutions to loyal clients who believe in an industrial reality that became a reference in its segment for the capacity to innovate, to be in line with the market evolution and sometimes to anticipate them.
Organisation logo
Product information
| Product name | Vitocal 200-A PRO AA-BB 42 R410 |
|---|---|
| Product identification | UN CPC code: 43913 Refrigerating and freezing equipment and heat pumps, except household type equipment The units are compliant with: • 2006/42/EC (Machinery Directive) • 2014/68/EU (PED) • 2014/30/EU (EMC) • 2014/35/EU (LVD) • 811/2013/EU (ErP) • 813/2013/EU (ErP) • 2016/2281/EU (ErP) |
| Product description | Product description: The high efficiency Heat Pumps of the Vitocal 200-A PRO AA-BB 26-42-R410 series, with R410A refrigerant, are designed to satisfy the needs of small and medium domestic and service sector environments: these units can be combined with Fan Coil units or even with an intermediate heat exchanger for process-cooling applications. The range consists of 4 sizes covering heating capacity from 29 to 48 kW. Among the series, the Vitocal 200-A PRO AA-BB 42-R410 is the most representative because the most sold (‘most product volume’). The selected reference product included in this EPD is highlighted in bold in the table below. All products refer to the standard configuration. |
| Technical purpose of product | produce heating or cooling |
| Manufacturing or service provision description | The production process for chillers and heat pumps begins with the assembly phase, where various components such as tanks, evaporators, electric pumps, fans, copper and iron pipes, metal panels, compressors, finned heat exchangers, and electrical panels are moved and assembled along the production line. When handling heavy parts, jib cranes are used to ensure safe and efficient movement. The components are then secured through the screwing process, where self-tapping screws and pneumatic or electric screwdrivers are used to fasten them together. Next, the brazing of refrigeration components takes place, and the gas reduction units are tightened in preparation for this brazing process. Once brazing is completed, the pressurization of the refrigeration circuit follows, which involves a mechanical resistance test. A leak detection process is then carried out on the refrigeration circuit using a mixture of Helium and Nitrogen. After ensuring there are no leaks, the circuit undergoes a vacuuming phase to clean it thoroughly. This is followed by the installation of electrical wiring, after which electrical measurements are taken to ensure all connections and components are functioning correctly. The machines then undergo a final testing phase, where their overall functionality is verified. Upon successful testing, the chillers and heat pumps are packaged for final delivery, ready for distribution to customers |
| Material properties | Mass per piece: 310.53 kg/piece |
| Manufacturing site | G.I. Industrial Holding SPA G.I. Industrial Holding Latisana Plant Italy Latisana 33053 via G.Ambrosio 4/6 |
| UN CPC code | 43913. Refrigerating and freezing equipment and heat pumps, except household type equipment |
| Geographical scope | Europe |

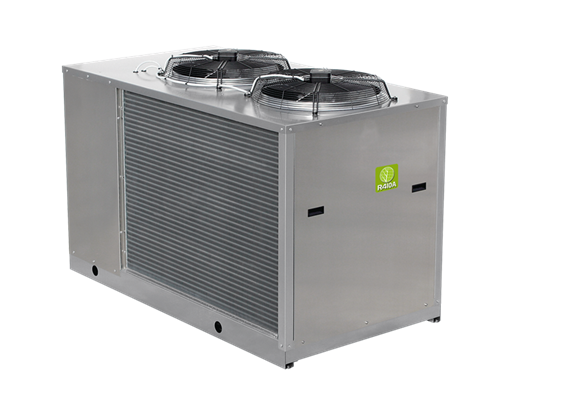

Product images
Technical characteristics and performance
Technical performance
| Product name | Heating capacity | Cooling capacity | Refrigerant | SCOP | SEER | RLS | Max Hot Water Temperature | Operating Temperature | Sound Level |
|---|---|---|---|---|---|---|---|---|---|
| Vitocal 200-A PRO AA-BB 42-R410 | 40.65kW | 42.2kW | R410a | 3,07 | 4,22 | 22 years | 55 °C | 15/+35 °C | Low noise |
Content declaration
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
|---|
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| Steel | 100.23 | 0 | 0 | 0 |
| Steel galvanized | 56.63 | 0 | 0 | 0 |
| Alluminium | 35.07 | 0 | 0 | 0 |
| Alluminium-Alloy | 18.96 | 0 | 0 | 0 |
| Cooper | 40.24 | 0 | 0 | 0 |
| Refrigerant | 9.5 | 0 | 0 | 0 |
| Polyamide | 9.05 | 0 | 0 | 0 |
| Electrical components | 8.34 | 0 | 0 | 0 |
| Plastics | 7.59 | 0 | 0 | 0 |
| Iron | 8.47 | 0 | 0 | 0 |
| Brass | 4.43 | 0 | 0 | 0 |
| Polyrthylene | 3.01 | 0 | 0 | 0 |
| Zinc | 3.91 | 0 | 0 | 0 |
| Paper | 2.01 | 0 | 0 | 0 |
| Rubber | 1.67 | 0 | 0 | 0 |
| Oil | 1.2 | 0 | 0 | 0 |
| Polycarbonate glass | 0.21 | 0 | 0 | 0 |
| Silicone | 0.01 | 0 | 0 | 0 |
| Total | 310.53 | 0 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit |
|---|---|---|---|
| Cardboard | 4.75 | 0 | 0 |
| Wood | 9.65 | 11.92 | 0.2 |
| Plastic Film | 4.96 | 0 | |
| Total | 19.36 | 11.92 | 0.2 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | Vitocal 200-A PRO AA-BB 42-R410 Number of pieces: 1 piece(s) |
| Conversion factor to mass | 310.53 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Do infrastructure and capital goods contribute more than 10% to the A1-A3 (A1-A5 for services) results of any environmental impact indicator declared in the EPD? | |
| Description of infrastructure and capital goods | Infrastructure and capital goods are included for the manufacturing stage (A3). The following types are considered: factory building, manufacturing machinery, and transport vehicles. Electricity and natural gas infrastructure are also included as part of the energy supply system. |
| Datasources used for this EPD | GaBi database (general) Sphera MLC (fka GaBi) Databases Edition 2025.1 |
| LCA Software | LCA for Experts (formerly GaBi Software) N/A |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | EN 15804 +A2 based on EF 3.1 characterization factor |
| Technology description including background system | The product considered is a reversible air-to-water heat pump, model Vitocal 200-A PRO AA-BB 42-R410, designed for heating and cooling in domestic and commercial buildings. It consists of key components such as scroll compressors, copper-aluminium heat exchangers, a stainless steel plate evaporator, and an R410a refrigerant circuit. The manufacturing process includes assembly of mechanical and electrical components, brazing, and final testing at the GI Industrial facility in Latisana, Italy. Raw materials include steel, aluminium, copper, plastics, and refrigerant, sourced from European and Chinese suppliers. The use stage covers 22 years of operation with electricity consumption based on the European grid mix. Maintenance includes regular inspections and replacement of safety valves. End-of-life treatment involves disassembly, material separation, and recycling or disposal according to PCR guidelines. |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | Primary data for manufacturing and energy consumption (A3) were collected by the EPD owner in 2025. Secondary data for raw materials and components (A1) were sourced from the Sphera MLC 2025.1 database, with reference years ranging from 2020 to 2024. The share of primary data for GWP-GHG results in modules A1–A3 is 3%. |
|---|
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| Refrigerant production | Database | Sphera MLC 2025.1 | 2024 | Secondary data | 0% |
| Aluminium production | Database | Sphera MLC 2025.1 | 2024 | Secondary data | 0% |
| Steel production | Database | Sphera MLC 2025.1 | 2024 | Secondary data | 0% |
| Production of other raw materials | Database | Sphera MLC 2025.1 | 2024 | Secondary data | 0% |
| Energy consumption during manufacturing | Collected data+ Database | Epd-Owenr + Sphera MLC 2025.1 | 2025 | Primary data | 2% |
| Transport | Collected data+ Database | Epd-Owenr + Sphera MLC 2025.1 | 2025 | Primary data | 1% |
| Other manufacturing materials | Database | Sphera MLC 2025.1 | 2024 | Secondary data | 0% |
| Landfill | Database | Sphera MLC 2025.1 | 2024 | Secondary data | 0% |
| Electricity consumption during use phase | Collected data+ Database | Epd-Owenr + Sphera MLC 2025.1 | 2025 | Primary data | 0% |
| Total share of primary data, of GWP-GHG results for A1-A3 | 3% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Residual electricity mix on the market | |
| Energy sources | Hydro | 16.46% |
| Wind | 7.25% | |
| Solar | 8.68% | |
| Biomass | 1.57% | |
| Geothermal | 2.05% | |
| Waste | 1.62% | |
| Nuclear | 0% | |
| Natural gas | 49.91% | |
| Coal | 4.86% | |
| Oil | 2.69% | |
| Peat | 0% | |
| Other | 4.9% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 0.39 kg CO2 eq./kWh | |
| Method used to calculate residual electricity mix | Electricity Grid Mix-Italy |
|---|
System boundary
| Description of the system boundary | c) Cradle to grave and module D (A + B + C + D). |
|---|---|
| Excluded modules | Yes, there is an excluded module, or there are excluded modules |
| Justification for the omission of modules | B7 Operational water use: no water is used during the process B5 Refurbishment: includes larger interventions to keep the system up-to-date and prolong the RLS. For the product at hand, no measures of this regard usually take place. |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | X | X | X | X | X | X | ND | X | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Global | Global | Italy | Europe | Europe | Europe | Europe | Europe | Europe | N/A | Europe | N/A | Europe | Europe | Europe | Europe | Europe | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 3% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

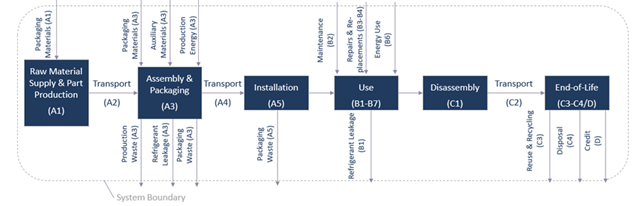

Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Standard European Use Scenario – Heat Pump Operation over 22 Years |
|---|---|
| Description of the default scenario | This scenario assumes the use of the Vitocal 200-A PRO AA-BB 42-R410 reversible heat pump in a typical European climate (France), providing heating and cooling over a reference service life of 22 years. The product is installed in domestic or commercial buildings, with operational energy consumption based on the European electricity grid mix. Transport distances, maintenance intervals, and refrigerant leakage rates follow the default assumptions of the applicable PCR (PSR-0013-ed3.0-EN-2023-06-06). |
Module A4: Transport to the building site
| Explanatory name of the default scenario in module A4 | Transport |
|---|---|
| Brief description of the default scenario in module A4 | the transport of the assembled product including packaging to the installation site |
| Description of the default scenario in module A4 | It describes the transport of the assembled product including packaging to the installation site. The process is modelled using diesel truck. It is assumed that 10 heat pumps are shipped per transport. Based on a total product mass of 350.33 kg per heat pump (components + packaging), a utilization ratio of 20.25% is calculated. The distance of 500 km is set to represent the transport from G.I. Industrial Holding in Latisana to the customer. |
| Module A4 information | Value | Unit |
|---|---|---|
Distance | 500 | km |
Capacity utilization (including empty returns) | 20.25 | % |
Module A5: Installation in the building
| Explanatory name of the default scenario in module A5 | Installation at site |
|---|---|
| Brief description of the default scenario in module A5 | Installation of the product on the site of use as well as the disposal of the waste |
| Description of the default scenario in module A5 | The installation of the product at the site with a crane. Packing materials are disposed by the installers |
| Module A5 information | Value | Unit |
|---|---|---|
Net fresh water consumption during installation | 4.61E-03 | m3 |
| Energy Consumption for the crane | 5.13 | MJ, net calorific value |
Module B1: Use
| Explanatory name of the default scenario in module B1 | Refrigerant Use |
|---|---|
| Brief description of the default scenario in module B1 | Emissions during the product’s use stage |
| Description of the default scenario in module B1 | Refrigerant lost for the analyzed heat pump, this includes the leakage of refrigerant throughout the reference service life (RSL). |
| Module B1 information | Value | Unit |
|---|---|---|
| Refrigerant loss throughout RSL | 0.066 | kg |
Module B2: Maintenance
| Explanatory name of the default scenario in module B2 | Maintenance |
|---|---|
| Brief description of the default scenario in module B2 | Heat Pump maintenance actions |
| Description of the default scenario in module B2 | To maintain efficiency in terms of operation und energy usage of the product, frequent inspection is needed. Based on information from the product manual and the manufacturer itself, smaller monthly checks and larger annual checks are required. The scope of the inspection covers visual and functional tests for a wide range of systems and is described in the product manual. The inspection itself does not require any additional materials or resources. |
| Module B2 information | Value | Unit |
|---|---|---|
Maintenance process | Maintenance is modelled for one technician, doing a monthly round trip of 100 km in a typical van |
Module B3: Repair
| Explanatory name of the default scenario in module B3 | Repair |
|---|---|
| Brief description of the default scenario in module B3 | the most common issue is oil leakage of the compressor. |
| Description of the default scenario in module B3 | the most common issue is oil leakage of the compressor. It is therefore assumed, that once during the product lifetime of a typical heat pump, an oil leakage is detected, fixed, and the entire compressor oil exchanged |
| Module B3 information | Value | Unit |
|---|---|---|
Repair process | 2.93 | kg |
Module B4: Replacement
| Explanatory name of the default scenario in module B4 | Replacements |
|---|---|
| Brief description of the default scenario in module B4 | Planned exchange |
| Description of the default scenario in module B4 | For this study, this includes the 4-way valve with an estimated lifespan of 5 years and all security valves with an approximated lifespan of 3 years |
| Module B4 information | Value | Unit |
|---|---|---|
Replacement process | 4 way valve |
Module B6: Operational energy use
| Explanatory name of the default scenario in module B6 | operational energy use |
|---|---|
| Brief description of the default scenario in module B6 | operational energy use of the product |
| Description of the default scenario in module B6 | Heat pump consumption throughout its lifetime |
| Module B6 information | Value | Unit |
|---|---|---|
| Heating power | 40,95 | kW |
kWh |
Module C: End-of-life
| Explanatory name of the default scenario in module C | Mix scenario. |
|---|---|
| Brief description of the default scenario in module C | Recycling: 92% Incineration: 2% Landfill: 4% Leakage (Refrigerant): 2% |
| Description of the default scenario in module C | Removal and disassembly of the product at the site, transport of the heat pump from the installation site to the recycling facility, disassembly and End Of Life treatment. |
| Module C information | Value | Unit |
|---|---|---|
| Material collected, product | 310,53 | kg |
| Material collected, repair and replacements | 92,87 | kg |
| Leakage to ambient air( refrigerant R410) | 8,55 | kg |
| Material for incineration | 7,70 | kg |
| Material for landfill | 15,49 | kg |
| Material for recycling | 371,66 |
Reference service life
| Description of the default scenario in reference service life | 22 years |
|---|
| Reference service life information | Value | Unit |
|---|---|---|
Reference service life | 22 | year(s) |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Mix scenario |
|---|---|
| Brief description of the default scenario in module D | Benefits and loads, that occur outside the system boundaries |
| Description of the default scenario in module D | In this inquiry, this includes credit from recycling. Recycled material is not directly used to build new heat pumps (closed-loop), but substitutes primary material within another, undefined product system (open-loop). |
| Module D information | Value | Unit |
|---|---|---|
| Steel and other ferrous metals | 100 | % |
| Copper an aluminium | 100 | % |
| Refrigerant (R410) | 81 | % |
| Waste paper | 100 | % |
| Plastic (w/o polyethylene,silicone) | 100 | % |
| Energy recovery-Electricity | 8,96 | MJ |
| Energy recovery-Thermal | 20,8 | MJ |
| Non-recyclable materials | - | N/A |
Additional scenario 1
| Name of the additional scenario | 100 % Disposal |
|---|---|
| Description of the additional scenario | End of Life: 100% Disposal |
Module A4: Transport to the building site
| Description of the additional scenario in module A4 | NOT DECLARED |
|---|
Module A5: Installation in the building
| Description of the additional scenario in module A5 | NOT DECLARED |
|---|
Module B1: Use
| Description of the additional scenario in module B1 | NOT DECLARED |
|---|
Module B2: Maintenance
| Description of the additional scenario in module B2 | NOT DECLARED |
|---|
Module B3: Repair
| Description of the additional scenario in module B3 | NOT DECLARED |
|---|
Module B4: Replacement
| Description of the additional scenario in module B4 | NOT DECLARED |
|---|
Module B6: Operational energy use
| Description of the additional scenario in module B6 | NOT DECLARED |
|---|
Module C: End-of-life
| Description of the additional scenario in module C | End of Life: 100% Disposal |
|---|
Module D: Beyond product life cycle
| Description of the additional scenario in module D | End of Life: 100% Disposal |
|---|
Additional scenario 2
| Name of the additional scenario | 100% incineration (>60%) |
|---|---|
| Description of the additional scenario | Alternative End of Life Scenario:100% Incineration >60% |
Module A4: Transport to the building site
| Description of the additional scenario in module A4 | NOT DECLARED |
|---|
Module A5: Installation in the building
| Description of the additional scenario in module A5 | NOT DECLARED |
|---|
Module B1: Use
| Description of the additional scenario in module B1 | NOT DECLARED |
|---|
Module B2: Maintenance
| Description of the additional scenario in module B2 | NOT DECLARED |
|---|
Module B3: Repair
| Description of the additional scenario in module B3 | NOT DECLARED |
|---|
Module B4: Replacement
| Description of the additional scenario in module B4 | NOT DECLARED |
|---|
Module B6: Operational energy use
| Description of the additional scenario in module B6 | NOT DECLARED |
|---|
Module C: End-of-life
| Description of the additional scenario in module C | 100% incineration (>60%) |
|---|
Module D: Beyond product life cycle
| Description of the additional scenario in module D | 100% incineration (>60%) |
|---|
Additional scenario 3
| Name of the additional scenario | 100% recycling |
|---|---|
| Description of the additional scenario | Alternative End of Life Scenario:100% recycling |
Module A4: Transport to the building site
| Description of the additional scenario in module A4 | NOT DECLARED |
|---|
Module A5: Installation in the building
| Description of the additional scenario in module A5 | NOT DECLARED |
|---|
Module B1: Use
| Description of the additional scenario in module B1 | NOT DECLARED |
|---|
Module B2: Maintenance
| Description of the additional scenario in module B2 | NOT DECLARED |
|---|
Module B3: Repair
| Description of the additional scenario in module B3 | NOT DECLARED |
|---|
Module B4: Replacement
| Description of the additional scenario in module B4 | NOT DECLARED |
|---|
Module B6: Operational energy use
| Description of the additional scenario in module B6 | NOT DECLARED |
|---|
Module C: End-of-life
| Description of the additional scenario in module C | End of Life: 100% recycling |
|---|
Module D: Beyond product life cycle
| Description of the additional scenario in module D | End of Life: 100% recycling |
|---|
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 1.77E+3 | 4.45E+1 | 5.26E-1 | 1.64E+2 | 6.06E+3 | 3.89E+0 | 4.61E+3 | ND | 1.87E+5 | ND | 6.85E-2 | 1.96E+0 | 2.12E+4 | 1.37E+1 | -1.65E+3 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 1.81E+3 | 4.27E+1 | 5.08E-1 | 1.64E+2 | 6.14E+3 | 3.87E+0 | 4.61E+3 | ND | 1.84E+5 | ND | 9.24E-2 | 1.88E+0 | 2.12E+4 | 1.36E+0 | -1.65E+3 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -4.20E+1 | 1.81E+0 | 1.00E+0 | 0.00E+0 | -1.36E+2 | 1.45E-2 | 4.48E+0 | ND | 1.90E+3 | ND | -2.85E-2 | 7.96E-2 | 6.06E+0 | 1.24E+1 | -2.13E+0 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 3.87E+0 | 4.39E-3 | 8.91E-5 | 0.00E+0 | 6.31E+1 | 8.80E-4 | 2.73E-1 | ND | 6.08E+2 | ND | 4.62E-3 | 1.93E-4 | 9.78E-4 | -1.32E-4 | -3.84E+0 |
| Ozone depletion | ODP | kg CFC-11 eq. | 2.43E-8 | 6.58E-12 | 1.34E-1 | 0.00E+0 | 1.02E-9 | 4.25E-12 | 6.88E-9 | ND | 4.20E-6 | ND | 7.44E-14 | 2.90E-13 | 3.12E-12 | -7.38E-12 | -2.74E-8 |
| Acidification | AP | mol H+ eq. | 6.57E+0 | 7.95E-2 | 1.02E-3 | 0.00E+0 | 4.67E+1 | 9.88E-3 | 2.68E+0 | ND | 4.04E+2 | ND | 4.44E-4 | 3.19E-3 | 5.67E-3 | 3.37E-3 | -7.59E+0 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 1.25E-3 | 1.08E-5 | 2.19E-7 | 0.00E+0 | 1.65E-2 | 1.06E-5 | 1.73E-3 | ND | 3.94E-1 | ND | 1.21E-6 | 4.75E-7 | 9.65E-7 | 3.23E-4 | -1.96E-3 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 9.96E-1 | 3.33E-2 | 3.78E-4 | 0.00E+0 | 2.35E+1 | 1.63E-3 | 3.63E-1 | ND | 9.68E+1 | ND | 1.60E-4 | 1.31E-3 | 2.17E-3 | 3.47E-3 | -1.00E+0 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 1.09E+1 | 3.72E-1 | 4.20E-3 | 0.00E+0 | 2.55E+2 | 1.82E-2 | 4.01E+0 | ND | 1.09E+3 | ND | 1.60E-3 | 1.46E-2 | 2.58E-2 | 1.31E-2 | -1.10E+1 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 3.18E+0 | 8.17E-2 | 1.11E-3 | 0.00E+0 | 4.55E+1 | 9.31E-3 | 1.16E+0 | ND | 2.40E+2 | ND | 3.84E-4 | 3.31E-3 | 5.63E-3 | 8.22E-3 | -3.22E+0 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1, 2 | kg Sb eq. | 1.46E-1 | 1.27E-6 | 2.58E-8 | 0.00E+0 | 4.08E-4 | 3.47E-7 | 6.03E-2 | ND | 3.83E-2 | ND | 2.98E-8 | 5.60E-8 | 3.46E-8 | -4.66E-8 | -1.80E-1 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 1.55E+4 | 5.89E+2 | 1.19E+1 | 0.00E+0 | 7.86E+4 | 1.54E+2 | 1.16E+4 | ND | 3.76E+6 | ND | 5.75E+0 | 2.59E+1 | 5.92E+0 | 3.87E+0 | -1.91E+4 |
| Water use | WDP1 | m3 world eq. deprived | 3.12E+2 | 1.12E-1 | 2.27E-3 | 0.00E+0 | 2.80E+1 | 6.87E-2 | 3.76E+1 | ND | 4.62E+4 | ND | 2.05E-3 | 4.93E-3 | 1.21E+0 | -4.35E-2 | -3.15E+2 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
| Disclaimer 2 | The results of the impact categories abiotic depletion of minerals and metals may be highly uncertain in LCAs that include capital goods/infrastructure in generic datasets, in case infrastructure/capital goods contribute greatly to the total results. This is because the LCI data of infrastructure/capital goods used to quantify these indicators in currently available generic datasets sometimes lack temporal, technological and geographical representativeness. Caution should be exercised when using the results of these indicators for decision-making purposes. | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 1.81E+3 | 4.27E+1 | 5.08E-1 | 1.64E+2 | 6.14E+3 | 3.88E+0 | 4.61E+3 | ND | 1.86E+5 | ND | 9.32E-2 | 1.88E+0 | 2.12E+4 | 1.11E+1 | -1.65E+3 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 4.17E+2 | 4.24E+0 | 8.16E-2 | 0.00E+0 | 5.92E+3 | 0.00E+0 | 5.07E-1 | ND | 2.57E+6 | ND | 4.33E-1 | 1.87E-1 | 7.99E-3 | 1.29E-3 | -3.66E+3 |
| PERM | MJ, net calorific value | 4.69E+3 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.61E+0 | 2.78E+3 | ND | 0.00E+0 | ND | 0.00E+0 | 0.00E+0 | 1.51E+0 | -4.21E+0 | -2.94E+1 |
| PERT | MJ, net calorific value | 5.11E+3 | 4.24E+0 | 8.62E-2 | 0.00E+0 | 5.92E+3 | 2.61E+0 | 2.79E+3 | ND | 2.57E+6 | ND | 4.33E-1 | 1.87E-1 | 1.52E+0 | -4.21E+0 | -3.69E+3 |
| PENRE | MJ, net calorific value | 8.39E+2 | 5.89E+2 | 1.19E+1 | 0.00E+0 | 7.85E+4 | 0.00E+0 | 7.71E+1 | ND | 3.76E+6 | ND | 5.74E+0 | 2.59E+1 | 1.11E+0 | 1.78E-1 | -1.06E+4 |
| PENRM | MJ, net calorific value | 1.71E+4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.54E+2 | 1.15E+4 | ND | 0.00E+0 | ND | 0.00E+0 | 0.00E+0 | 4.82E+0 | 3.70E+0 | -2.50E+3 |
| PENRT | MJ, net calorific value | 1.79E+4 | 5.89E+2 | 1.19E+1 | 0.00E+0 | 7.86E+4 | 1.54E+2 | 1.16E+4 | ND | 3.76E+6 | ND | 5.75E+0 | 2.59E+1 | 5.92E+0 | 3.87E+0 | -1.31E+4 |
| SM | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 1.01E+1 | 4.61E-3 | 9.35E-5 | 0.00E+0 | 2.92E+0 | 2.62E-3 | 4.85E+0 | ND | 1.99E+3 | ND | 2.14E-4 | 2.03E-4 | 2.86E-2 | -2.62E-3 | -8.95E+0 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 1.76E-4 | 2.35E-8 | 4.53E-10 | 0.00E+0 | 3.15E-6 | 8.73E-9 | 6.14E-6 | ND | 4.91E-3 | ND | 2.31E-10 | 9.84E-10 | 3.29E-9 | -8.65E-9 | -4.64E-6 |
| NHWD | kg | 2.02E+2 | 5.24E-2 | 1.06E-3 | 0.00E+0 | 1.10E+1 | 1.47E-2 | 9.96E+0 | ND | 2.91E+3 | ND | 8.02E-4 | 2.31E-3 | 5.80E-1 | 1.25E+1 | -1.95E+2 |
| RWD | kg | 2.78E-1 | 9.84E-4 | 2.00E-5 | 0.00E+0 | 1.48E-1 | 6.07E-4 | 1.91E-1 | ND | 5.94E+2 | ND | 1.08E-5 | 4.34E-5 | 1.50E-4 | -1.13E-3 | -2.18E-1 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 2.04E+1 | 0.00E+0 | 3.95E+1 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.72E+2 |
| MER | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | 0.00E+0 | 0.00E+0 | 7.70E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 8.96E+0 |
| EET | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.08E+1 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Results for additional scenarios for modules A4-C4
| Additional scenario | 100% recycling |
|---|
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWP total | kg CO2 eq. | 6.85E-2 | 1.96E+0 | 2.12E+4 | 0.00E+0 | -1.61E+3 | |||||||||||
| GWP-fossil | kg CO2 eq. | 9.24E-2 | 1.88E+0 | 2.12E+4 | 0.00E+0 | -1.60E+3 | |||||||||||
| GWP-Biogenic | kg CO2 eq. | -2.85E-2 | 7.96E-2 | 0.00E+0 | 0.00E+0 | -1.78E+0 | |||||||||||
| GWP-luluc | kg CO2 eq. | 4.62E-3 | 1.93E-4 | 0.00E+0 | 0.00E+0 | -3.86E+0 | |||||||||||
| ODP | kg CFC-11 eq. | 7.44E-14 | 2.90E-13 | 0.00E+0 | 0.00E+0 | -2.72E-8 | |||||||||||
| AP | Mole of H+ eq. | 4.44E-4 | 3.19E-3 | 0.00E+0 | 0.00E+0 | -7.47E+0 | |||||||||||
| EP-Freshwater | Kg P eq. | 1.12E-6 | 4.75E-7 | 0.00E+0 | 0.00E+0 | -1.85E-3 | |||||||||||
| EP-Marine | Kg N eq. | 1.60E-4 | 1.31E-3 | 0.00E+0 | 0.00E+0 | -9.86E-1 | |||||||||||
| EP-terrestrial | Mole of N eq. | 1.60E-3 | 1.46E-2 | 0.00E+0 | 0.00E+0 | -1.08E-1 | |||||||||||
| POCP | Kg NMVOC eq. | 3.84E-4 | 3.31E-3 | 0.00E+0 | 0.00E+0 | -3.18E+0 | |||||||||||
| ADP-minerals & metals | Kg Sb eq. | 2.98E-8 | 5.60E-8 | 0.00E+0 | 0.00E+0 | -1.80E-1 | |||||||||||
| ADP-fossil | MJ | 5.75E+0 | 2.59E+1 | 0.00E+0 | 0.00E+0 | -1.87E+4 | |||||||||||
| WDP | m3 world equiv. | 2.05E+3 | 4.93E-3 | 0.00E+0 | 0.00E+0 | -3.25E+2 | |||||||||||
| GWP-GHG | Kg CO2 eq. | 9.32E-2 | 1.88E+0 | 2.12E+4 | 0.00E+0 | -1.60E+3 | |||||||||||
| PERE | MJ | 4.33E-1 | 1.87E-1 | 0.00E+0 | 0.00E+0 | -1.81E+3 | |||||||||||
| PERM | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | -3.73E+3 | |||||||||||
| PERT | MJ | 4.33E+0 | 1.87E-1 | 0.00E+0 | 0.00E+0 | -5.54E+3 | |||||||||||
| PENRE | MJ | 5.74E+0 | 2.59E+1 | 0.00E+0 | 0.00E+0 | -9.87E+3 | |||||||||||
| PENRM | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | -1.12E+4 | |||||||||||
| PENRT | MJ | 5.75E+0 | 2.59E+1 | 0.00E+0 | 0.00E+0 | -2.10E+4 | |||||||||||
| SM | Kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| RSF | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| NRSF | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| FW | m3 | 2.14E-4 | 2.03E-4 | 0.00E+0 | 0.00E+0 | -1.22E-1 | |||||||||||
| HWD | Kg | 2.31E-10 | 9.84E-10 | 0.00E+0 | 0.00E+0 | -1.23E-1 | |||||||||||
| NHWD | Kg | 8.02E-4 | 2.31E-3 | 0.00E+0 | 0.00E+0 | -1.99E+2 | |||||||||||
| RWD | Kg | 1.08E-5 | 4.34E-5 | 0.00E+0 | 0.00E+0 | -2.21E-1 | |||||||||||
| Components for re-use | Kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| Material for recycling | Kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.95E+2 | |||||||||||
| Material for energy recovery | Kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| Exported energy, electricity | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| Exported energy, thermal | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| Acronyms | |||||||||||||||||
| Disclaimers | |||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Results for additional scenarios for modules A4-C4
| Additional scenario | 100% incineration (>60%) |
|---|
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2 eq. | 6.85E-2 | 1.96E+0 | 2.17E+4 | 0.00E+0 | -1.32E+2 | |||||||||||
| GWP-fossil | Kg CO2 eq | 9.24E-2 | 1.88E+0 | 2.14E+4 | 0.00E+0 | -1.31E+2 | |||||||||||
| GWP-biogenic | Kg CO2 eq | -2.85E-2 | 7.96E-2 | 3.11E+2 | 0.00E+0 | -8.26E-1 | |||||||||||
| GWP-luluc | Kg CO2 eq | 4.62E-3 | 1.93E+4 | 5.02E-2 | 0.00E+0 | -1.38E-1 | |||||||||||
| ODP | Kg CFC-11 eq | 7.44E-14 | 2.90E-13 | 1.60E-10 | 0.00E+0 | -1.16E-9 | |||||||||||
| AP | Mole of H+ eq. | 4.44E-4 | 3.19E-3 | 2.19E-1 | 0.00E+0 | -1.45E+0 | |||||||||||
| EP-freshwater | Kg P eq | 1.21E-6 | 4.75E-7 | 4.95E-5 | 0.00E+0 | -1.59E-4 | |||||||||||
| EP-marine | Kg N eq. | 1.60E-4 | 1.31E-3 | 1.12E-1 | 0.00E+0 | -3.75E-2 | |||||||||||
| EP-terrestial | Mole of N eq. | 1.60E-3 | 1.46E-2 | 1.32E+0 | 0.00E+0 | -4.50E-1 | |||||||||||
| POCP | Kg NMVOC eq | 3.84E-4 | 3.31E-3 | 2.89E-1 | 0.00E+0 | -1.04E-1 | |||||||||||
| ADP-minerals & metals | Kg Sb eq. | 2.98E-8 | 5.60E-8 | 1.78E-6 | 0.00E+0 | -1.11E-5 | |||||||||||
| ADP-fossil | MJ | 5.75E+0 | 2.59E+1 | 3.04E+2 | 0.00E+0 | -1.95E+3 | |||||||||||
| WDP | m3 world equiv. | 2.05E+3 | 4.93E+3 | 6.19E+1 | 0.00E+0 | -2.10E+1 | |||||||||||
| GWP-GHG | Kg CO2 eq | 9.32E-2 | 1.88E+0 | 2.14E+4 | 0.00E+0 | -1.32E+2 | |||||||||||
| PERE | MJ | 4.33E-1 | 1.87E-1 | 7.78E+1 | 0.00E+0 | -7.08E+2 | |||||||||||
| PERM | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| PERT | MJ | 4.33E+1 | 1.87E-1 | 7.78E+1 | 0.00E+0 | -7.08E+2 | |||||||||||
| PENRE | MJ | 5.74E+0 | 2.59E+1 | 3.04E+2 | 0.00E+0 | -1.95E+3 | |||||||||||
| PENRM | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| PENRT | MJ | 5.75E+0 | 2.59E+1 | 3.04E+2 | 0.00E+0 | -1.95E+3 | |||||||||||
| SM | Kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| RSF | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| NRSF | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| FW | m3 | 2.14E-4 | 2.03E-4 | 1.47E+0 | 0.00E+0 | -5.57E-1 | |||||||||||
| HWD | Kg | 2.13E-10 | 9.84E-10 | 1.69E-7 | 0.00E+0 | -7.10E-7 | |||||||||||
| NHWD | Kg | 8.02E-4 | 2.13E-3 | 2.98E+1 | 0.00E+0 | -1.07E+0 | |||||||||||
| RWD | Kg | 1.08E-5 | 4.34E-5 | 7.71E-3 | 0.00E+0 | -2.84E-2 | |||||||||||
| Components for re-use | Kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| Material for recycling | Kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| Material for energy recovery | Kg | 0.00E+0 | 0.00E+0 | 3.95E+2 | 0.00E+0 | 0.00E+0 | |||||||||||
| Exported energy, electricity | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 4.60E+2 | |||||||||||
| Exported energy, thermal | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.07E+3 | |||||||||||
| Acronyms | |||||||||||||||||
| Disclaimers | |||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Results for additional scenarios for modules A4-C4
| Additional scenario | 100 % Disposal |
|---|
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWP-total | kg CO2 eq. | 6.85E-2 | 1.96E+0 | 2.13E+4 | 1.23E+0 | -2.57E+1 | |||||||||||
| GWP-fossil | kg CO2 eq | 9.24E-2 | 1.88E+0 | 2.13E+4 | 1.32E-1 | -2.55E+1 | |||||||||||
| GWP-biogenic | kg CO2 eq | -2.85E-2 | 7.96E-2 | 6.07E+1 | 1.10E+0 | -1.61E-1 | |||||||||||
| GWP-luluc | kg CO2 eq | 4.62E-3 | 1.93E-4 | 9.78E-3 | -1.05E-5 | -2.68E+0 | |||||||||||
| ODP | Kg CFC-11 eq. | 7.44E-14 | 2.90E-13 | 3.12E-11 | -6.52E-13 | -2.26E-10 | |||||||||||
| AP | Mole of H+ eq. | 4.44E-4 | 3.19E-3 | 5.67E-2 | 3.19E-4 | -2.82E-2 | |||||||||||
| EP-freshwater | Kg P eq. | 1.21E-6 | 4.75E-7 | 9.65E-6 | 2.87E-5 | -3.10E-5 | |||||||||||
| EP-marine | Kg N eq. | 1.60E-4 | 1.31E-3 | 2.18E-2 | 3.16E-4 | -7.29E-3 | |||||||||||
| EP-Terrestrial | Mole of N eq. | 1.60E-3 | 1.46E-2 | 2.58E-1 | 1.26E-3 | -8.76E-2 | |||||||||||
| POCP | Kg NMVOC eq | 3.84E-4 | 3.31E-3 | 5.63E-2 | 7.50E-4 | -2.03E-2 | |||||||||||
| ADP-minerals & metals | Kg Sb eq. | 2.98E-8 | 5.60E-8 | 3.46E-7 | -3.78E-9 | -2.16E-6 | |||||||||||
| ADP-fossil | Mj | 5.75E+0 | 2.59E+1 | 5.92E+1 | 5.06E-1 | -3.80E+2 | |||||||||||
| WDP | m3 world equiv. | 2.05E-3 | 4.95E-3 | 1.21E+1 | -3.82E-3 | -4.09E+0 | |||||||||||
| GWP-GHG | kg CO2 eq | 9.32E-2 | 1.88E+0 | 2.13E+4 | 9.95E-1 | -2.56E+1 | |||||||||||
| PERE | Mj | 4.33E+0 | 1.87E-1 | 1.52E+1 | -3.72E-1 | -1.38E+2 | |||||||||||
| PERM | Mj | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| PERT | Mj | 4.33E+1 | 1.87E-1 | 1.52E+1 | -3.72E+1 | -1.38E+2 | |||||||||||
| PENRE | Mj | 5.74E+0 | 2.59E+1 | 5.92E+1 | 5.06E-1 | -3.80E+2 | |||||||||||
| PENRM | Mj | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| PERNT | Mj | 5.75E+0 | 2.59E+1 | 5.92E+1 | 5.06E-1 | -3.80E+2 | |||||||||||
| SM | Kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| RSF | Mj | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| NRSF | Mj | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| FW | m3 | 2.14E-4 | 2.03E-4 | 2.86E-1 | -2.31E-4 | -1.09E-1 | |||||||||||
| HWD | Kg | 2.31E-10 | 9.84E-10 | 3.29E-8 | -7.16E-10 | -1.38E-7 | |||||||||||
| NHWD | Kg | 8.02E-4 | 2.31E-3 | 5.80E+0 | 1.11E+0 | -2.09E+1 | |||||||||||
| RWD | Kg | 1.08E-5 | 4.34E-5 | 1.50E+3 | -9.99E-5 | -5.53E-3 | |||||||||||
| Components for re-use | Kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| Material for recycling | Kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | |||||||||||
| Material for energy recovery | Kg | 0.00E+0 | 0.00E+0 | 7.70E+1 | 0.00E+0 | 0.00E+0 | |||||||||||
| Exported energy, electricity | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 8.96E+1 | |||||||||||
| Exported energy, thermal | MJ | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.08E+2 | |||||||||||
| Acronyms | |||||||||||||||||
| Disclaimers | |||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Abbreviations
EN European Norm (Standard)
EF Environmental Footprint
GPI General Programme Instructions
ISO International Organization for Standardization
CEN European Committee for Standardization
CPC Central product classification
GRI Global Reporting Initiative
SVHC Substances of Very High Concern
ND Not Declared
EPD Environmental Product Declaration
PCR Product Category Rules
LCA Life Cycle Assessment
ErP ErP European Regulation
SCOP Seasonal Coefficient of Performance
SEER Seasonal Energy Efficiency Ratio
SEPR Seasonal Energy Performance Ratio
CE Conformité Européenne
EU European Union
P.E.D. Pressure Equipment Directive
EMC Electromagnetic Compatibility (EMC) Directive
LVD Low Voltage Directive
UN United Nations
UNI Italian Standards Body
References
CEN standard EN 15804
Product Category Rules (PCR): PCR 2019:14 Construction products (EN 15804+A2) (2.0.1)
Version history
First emission 24/09/2025
