Tubular Drive: Rol Top, SunTop, Rol Motion

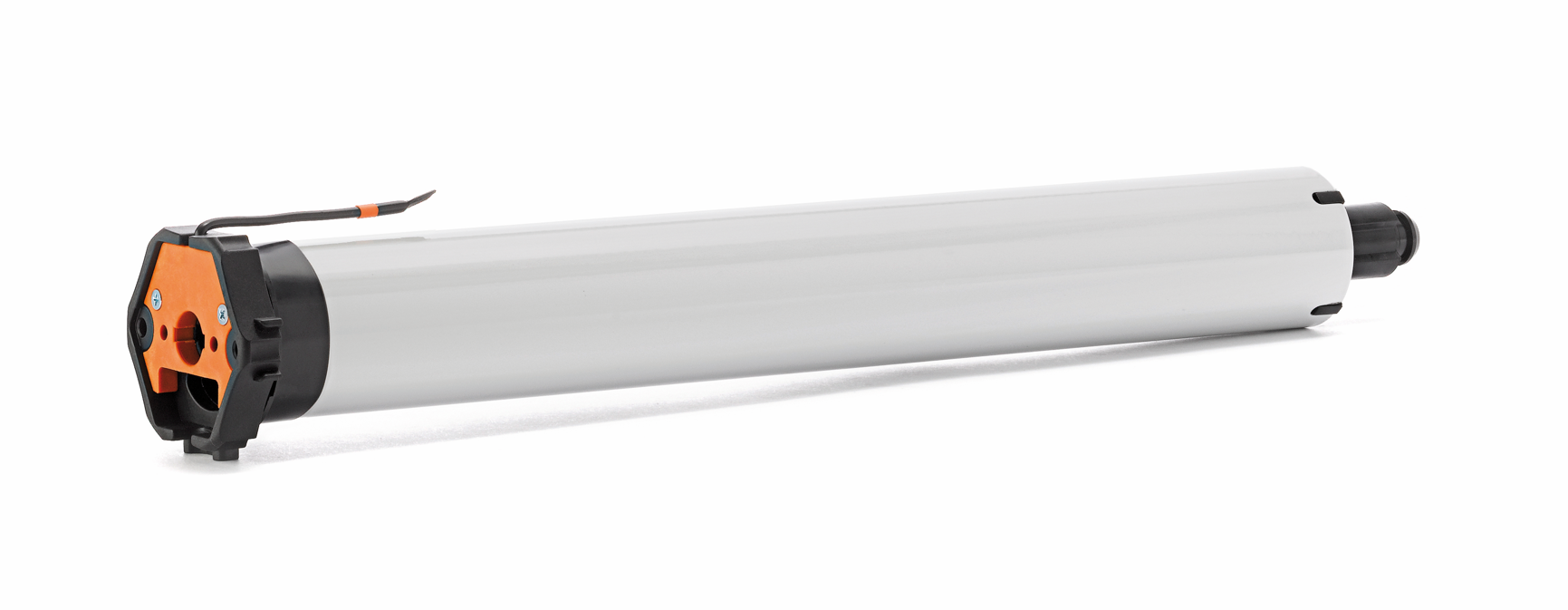

ROL TOP: with a diameter of 45 mm and a minimum length of 403 mm (K version), the tubular drives of the RolTop M series are suitable for space-saving roller shutters, blinds and screens. Most drives are available with or without an integrated radio system. Drives with torque ratings ranging from 2.5 to 50 Nm are available, operating at speeds of 14 to 90 rpm, depending on the version. Drives with soft brakes (up to a maximum of 20 Nm) are suitable for low-noise operation of the blind. All drives are easy to install and adjust in a time-saving manner. With the RH and SH tubular drives, the range of applications of the M series has been further expanded. The main feature of the RH drives is the wrap-around round head, which reduces the space required on the side significantly. Drives of the SH series (star head motor bearing) fit, among others, in motor bearings of various competitors.

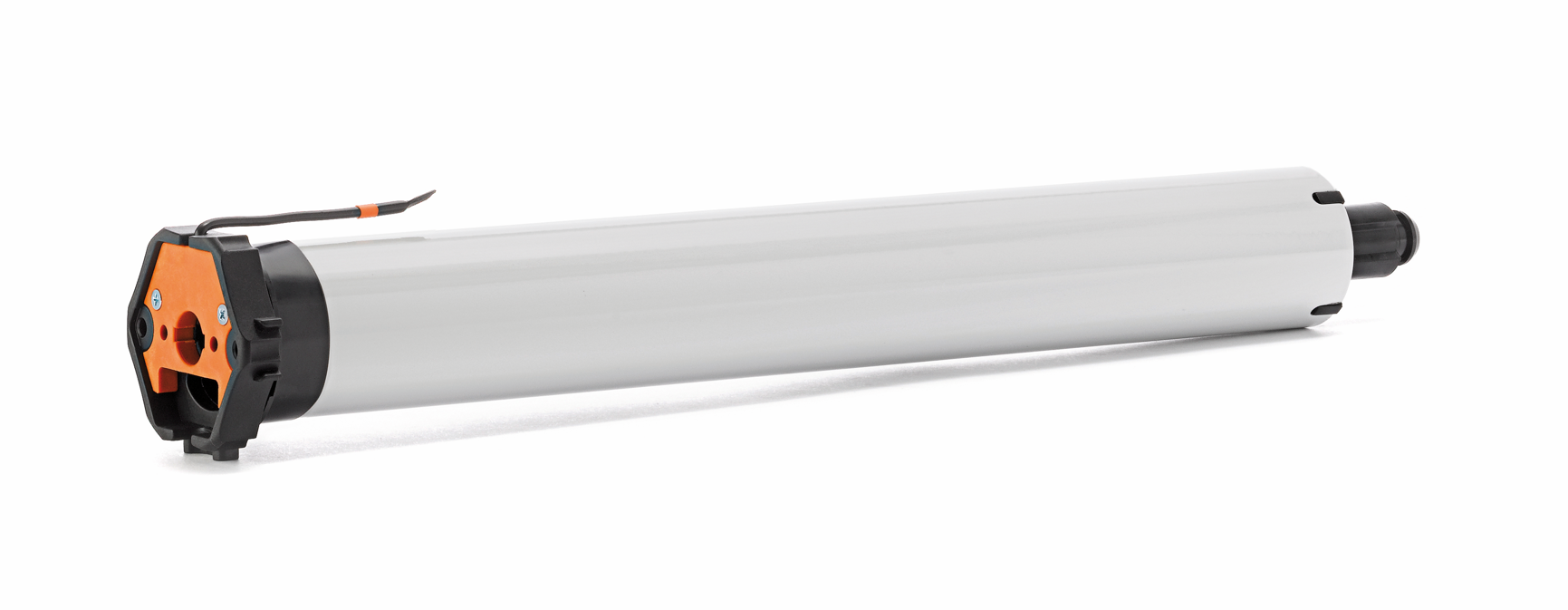

ROL MOTION drives ensure slower and quieter movement of motorized roller shutters thanks to their optimized running behavior. In addition to proven technologies, such as the soft brake and obstacle and blockage detection, quiet mode offers you even greater living comfort at minimal noise pollution. The RolMotion M-868 and M tubular drives are available both with and without an integrated radio system. They have a diameter of 45 mm and a minimum length of 478 mm. Configurations of 6 to 25 Nm and, depending on the version, 5 to 14 rpm are available. All drives can be easily installed and adjusted in a time-saving manner. With the RH and SH tubular drives, the range of applications of the M series has been further expanded. The main feature of RH drives is that the round head can be wound over, which significantly reduces the space required on the side.

SUN TOP tubular drive is designed for reliable and precise operation in awnings, roller blinds and screens. Equipped with intelligent force measurement, the drive continuously monitors the load to ensure optimal fabric tension and protect the system from damage. The integrated obstacle detection in both directions (up and down) enhances safety and prevents unnecessary strain on the material. For additional comfort, the load relief function can be activated at the end position to minimize tension on the fabric when fully extended or retracted. The end positions can be easily adjusted via the installation wire, making setup and fine-tuning straightforward and efficient. Thanks to the option for parallel connection, multiple drives can be operated simultaneously, ideal for larger installations. The silent soft brake ensures particularly quiet operation, reducing noise during start and stop phases, while the mechatronic end position detection with soft stop provides smooth and precise positioning. Built with the elero standard motor head and protected to IP 44, all variants of SunTop drives are both robust and dependable, even under demanding conditions.
