EPD-IES-0025892:002

Roller blind with guide

The roller shutter with guide is a shading system consisting of a roll-up curtain, a winding roller, and side guides that allow its vertical movement in a stable and quiet manner.

General information

EPD OwnerSloschek Helmuth srl
Registration numberEPD-IES-0025892:002
PCR2019:14 Construction products (EN 15804+A2) 2.0.1
StatusValid
Publication date2025-10-23
Valid until2030-09-24
EN 15804 compliantYes
Geographical scopeItaly

Programme information

ProgrammeInternational EPD System
AddressEPD International AB Box 210 60 SE-100 31 Stockholm Sweden
Websitewww.environdec.com
E-mailsupport@environdec.com

Product category rules

CEN standard EN 15804 serves as the Core Product Category Rules (PCR)
Product Category Rules (PCR)PCR 2019:14 Construction products (EN 15804+A2) (2.0.1)
PCR review was conducted byThe Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support.

Verification

LCA accountabilitysegreteria@spinlife.it, segreteria@spinlife.it, Sloschek Helmuth srl
Independent third-party verification of the declaration and data, according to ISO 14025:2006, via
Third-party verifierBureau Veritas Italia S.p.A.
Accredited byAccredia
Accredited certification body addressItaly
Procedure for follow-up of data during EPD validity involves third party verifier
*EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com.

Ownership and limitation on use of EPD

Limitations

EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.

Ownership

The EPD Owner has the sole ownership, liability, and responsibility for the EPD.

Information about EPD Owner

EPD OwnerSloschek Helmuth srl
Contact person nameKlaus Sloschek
Contact person e-mailklaus.sloschek@hs.bz.it
Organisation addressItaly Bressanone 39042 Via Julius Durst, 26/A

Description of the organisation of the EPD Owner

Slosheck Helmuth s.r.l. is an Italian company based in Bressanone, specializing in the design and production of roller shutters and integrated shutter boxes for residential and commercial buildings. It delivers customized solutions to improve energy efficiency, acoustic insulation, and indoor comfort. The offering includes roller shutters, modular shutter boxes, and accessories in various finishes and materials, with a strong focus on quality, sustainability, and safety, supported by a network of partners in Italy, Austria, and Germany.

Organisation logo

Product information

Product nameRoller blind with guide
Product identificationRoller blind with guide
Product descriptionThe roller shutter with guide is a shading system consisting of a roll-up curtain, a winding roller, and side guides that allow its vertical movement in a stable and quiet manner.
Technical purpose of productIt is a roll-formed aluminium product, insulated with injected polyurethane foam and finished with a multi-layer oven-baked coating. It stands out for its reduced winding diameter and high stability. The shutter has an average weight of about 3.4 kg/m².
Manufacturing or service provision descriptionThe product is made from semi-finished materials, such as aluminium, ABS and steel, which are cut and joined together using adhesives to form the finished product.
Material propertiesMass per piece: 20.65 kg/piece
Manufacturing siteSlosheck Helmuth s.r.l. Italy Bressanone 39042
UN CPC code4291. Domestic metal products
Geographical scopeItaly

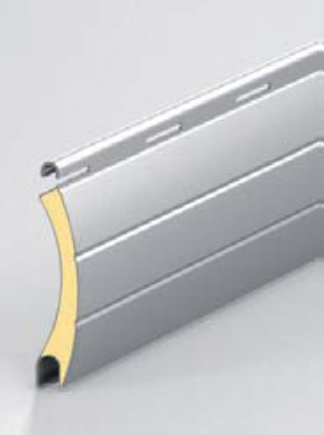

Product images

Content declaration

Content declaration of multiple productsThe mass (weight) of one unit of a product, as purchased: 20,65 kg (worst case)
Hazardous and toxic substancesThe product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight.
Product content
Content nameMass, kgPost-consumer recycled material, mass-% of productBiogenic material, mass-% of productBiogenic material1, kg C/declared unit
Foam-filled aluminium14.02000
Aluminium6.33000
ABS0.03000
Painted steel0.07000
PA0.12000
Plastic-embedded brush seals0.0700.120.01
Paper0.03000
Total20.6700.120.01
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2
Packaging materials
Material nameMass, kgMass-% (versus the product)Biogenic material1, kg C/declared unit
Nylon0.281.360
HDPE0.013.570
Total0.294.930
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2

LCA information

EPD based on declared or functional unitDeclared unit
Declared unit and reference flowRoller blind with guide Number of pieces: 1 piece(s)
Conversion factor to mass1
Are infrastructure or capital goods included in any upstream, core or downstream processes?
Datasources used for this EPDecoinvent database (general) ecoinvent 3.10 database
LCA SoftwareSimaPro SimaPro 9.6
Version of the EN 15804 reference packageEF Reference Package 3.1
Characterisation methodsThe set of impact categories suggested by the PEF methodology (EF 3.1 method as implemented in SimaPro software) was applied to assess potential environmental impacts. This method is the set recommended by European methodology and Standard EN 15804+A2 (CEN, 2019).
Technology description including background systemThe products considered are the ROLLER BLIND WITH GUIDE. The product is made from semi-finished materials, such as aluminium, ABS and steel, which are cut and joined together using adhesives to form the finished product.
Scrap (recycled material) inputs contribution levelLess than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs

Data quality assessment

Description of data quality assessment and reference yearsThe primary data cover a period of 12 months, reference year January 2024 - December 2024. The assessment of data quality is carried out and complies with EN 15941 which cover the geographical, technical, and temporal representativeness of the data, and account for the precision, completeness, consistency, and sources of the data
Data quality assessment
Process nameSource typeSourceReference yearData categoryShare of primary data, of GWP-GHG results for A1-A3
Generation of components of the product Database Ecoinvent v3.102024Secondary data0%
Manufacturing of productCollected dataEPD owner2024Primary data2.9%
Generation of electricity used in manufacturing of product Database Ecoinvent v3.102024Secondary data0%
Transport of raw materials from supplier to manufacturing site Database Ecoinvent v3.102024Primary data1.6%
Wastes during manufacturing phase Database Ecoinvent v3.102024Secondary data0%
End of life Database Eurostat2020Secondary data0%
Total share of primary data, of GWP-GHG results for A1-A34.5%
The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories.
Electricity data
Electricity used in the manufacturing process in A3 (A5 for services)
Type of electricity mixResidual electricity mix on the market
Energy sourcesHydro10.26%
Wind7.48%
Solar6.94%
Biomass7.24%
Geothermal2.08%
Waste0%
Nuclear1.9%
Natural gas49.95%
Coal8.84%
Oil3.24%
Peat0.01%
Other2.06%
GWP-GHG intensity (kg CO2 eq./kWh)0.64 kg CO2 eq./kWh

System boundary

Description of the system boundarya) Cradle to gate with modules C1-C4 and module D (A1-A3 + C + D).
Excluded modulesNo, there is no excluded module, or there are no excluded modules

Declared modules

Product stageConstruction process stageUse stageEnd of life stageBeyond product life cycle
Raw material supplyTransportManufacturingTransport to siteConstruction installationUseMaintenanceRepairReplacementRefurbishmentOperational energy useOperational water useDe-construction demolitionTransportWaste processingDisposalReuse-Recovery-Recycling-potential
ModuleA1A2A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Modules declaredXXXNDNDNDNDNDNDNDNDNDXXXXX
GeographyGlobalGlobalItalyN/AN/AN/AN/AN/AN/AN/AN/AN/AGlobalGlobalGlobalGlobalGlobal
Share of specific data4.5%--------------
Variation - products100%--------------
Variation - sites0%--------------
DisclaimerThe share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only.

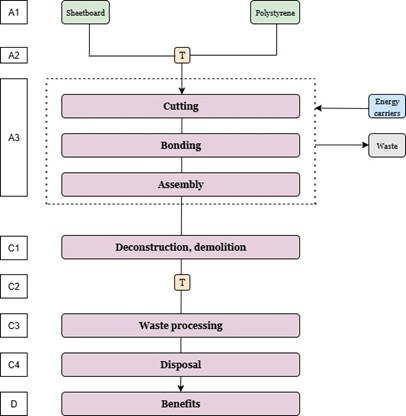

Process flow diagram(s) related images

Default scenario

Name of the default scenarioWorst case
Description of the default scenario1 unit of a product (referred to worst case product ROLLER BLIND WITH GUIDE 2400cmx2400cm).

Module C: End-of-life

Explanatory name of the default scenario in module CMajor mineral waste
Brief description of the default scenario in module CC3 55,36% recycling; C4 6,84% municipal incineration and 37,77% unsanitary landfill
Description of the default scenario in module CEurostat scenario (“major mineral waste”): for the products in exam 55,38% 0% is sent to recycle, 6,84% to incineration and 37,77% to landfill.
Module C informationValueUnit
Product demolition0,239
MJ
Transport to the treatment site for materials not sent to incineration80
km
Transport to the treatment site for materials sent to incineration 130
km
Preliminary treatments prior to recovery 55,36
%
Disposal of materials 44,54
%

Reference service life

Description of the default scenario in reference service lifeLifespan of the building in which the shutter box is installed
Reference service life informationValueUnit
Reference service life
Lifespan of the building
N/A

Module D: Beyond product life cycle

Explanatory name of the default scenario in module DBENEFITS
Brief description of the default scenario in module DPotential impacts and benefits associated with product recycling.
Description of the default scenario in module DModule D is calculated by the Circular Footprint Formula

Environmental performance

The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.

Mandatory environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - totalGWP-totalkg CO2 eq.2.36E+2NDNDNDNDNDNDNDNDND8.79E-13.34E-10.00E+01.03E+1-8.82E+1
Climate change - fossilGWP-fossilkg CO2 eq.2.31E+2NDNDNDNDNDNDNDNDND8.78E-13.33E-10.00E+01.21E+0-8.77E+1
Climate change - biogenicGWP-biogenickg CO2 eq.6.93E-1NDNDNDNDNDNDNDNDND6.51E-45.97E-50.00E+04.38E+1-2.92E-1
Climate change - land use and land-use changeGWP-luluckg CO2 eq.3.48E+0NDNDNDNDNDNDNDNDND7.14E-51.09E-40.00E+01.22E-4-1.81E-1
Ozone depletionODPkg CFC-11 eq.3.49E-6NDNDNDNDNDNDNDNDND1.88E-86.63E-90.00E+01.28E-9-5.29E-7
AcidificationAPmol H+ eq.1.34E+0NDNDNDNDNDNDNDNDND2.32E-31.04E-30.00E+01.06E-3-5.26E-1
Eutrophication aquatic freshwaterEP-freshwaterkg P eq.1.03E-1NDNDNDNDNDNDNDNDND1.14E-42.22E-50.00E+06.40E-4-2.75E-2
Eutrophication aquatic marineEP-marinekg N eq.2.10E-1NDNDNDNDNDNDNDNDND4.56E-43.52E-40.00E+08.26E-3-9.24E-2
Eutrophication terrestrialEP-terrestrialmol N eq.1.97E+0NDNDNDNDNDNDNDNDND4.83E-33.82E-30.00E+03.75E-3-9.64E-1
Photochemical ozone formationPOCPkg NMVOC eq.7.94E-1NDNDNDNDNDNDNDNDND2.20E-31.63E-30.00E+04.27E-3-2.99E-1
Depletion of abiotic resources - minerals and metalsADP-minerals&metals1kg Sb eq.6.56E-4NDNDNDNDNDNDNDNDND9.18E-71.07E-60.00E+01.20E-7-7.03E-4
Depletion of abiotic resources - fossil fuelsADP-fossil1MJ, net calorific value1.63E+3NDNDNDNDNDNDNDNDND2.63E+03.84E-10.00E+01.33E-1-5.85E+2
Water useWDP1m3 world eq. deprived3.25E+1NDNDNDNDNDNDNDNDND2.20E-11.92E-20.00E+05.65E-2-1.77E+1
AcronymsGWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator

Additional mandatory environmental performance indicators

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - GWP-GHGGWP-GHG1kg CO2 eq.2.36E+2NDNDNDNDNDNDNDNDND8.79E-13.34E-10.00E+01.03E+1-8.82E+1
AcronymsGWP-GHG = Global warming potential greenhouse gas.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero.

Additional voluntary environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Particulate matter emissionsPMDisease incidence1.57E-5NDNDNDNDNDNDNDNDND1.06E-82.62E-80.00E+01.42E-8-5.92E-6
Ionizing radiation - human healthIRP1kBq U235 eq.4.65E+1NDNDNDNDNDNDNDNDND3.38E-26.01E-30.00E+09.15E-4-3.75E+0
Eco-toxicity - freshwaterETP-fw2CTUe1.13E-6NDNDNDNDNDNDNDNDND1.37E-92.33E-90.00E+01.16E-9-9.99E-7
Human toxicity - cancer effectsHTP-c2CTUh2.49E-6NDNDNDNDNDNDNDNDND3.12E-92.92E-90.00E+02.59E-8-6.66E-7
Human toxicity - non-cancer effectsHTP-nc2CTUh8.79E+2NDNDNDNDNDNDNDNDND1.35E+01.26E+00.00E+02.66E+1-6.45E+2
Land-use related impacts/soil qualitySQP2Dimensionless5.25E+2NDNDNDNDNDNDNDNDND8.82E-12.79E+00.00E+04.31E+0-2.88E+2
AcronymsPM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator.
Disclaimer 2The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator.

Resource use indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
PEREMJ, net calorific value1.01E+3NDNDNDNDNDNDNDNDND2.04E-17.67E-20.00E+01.72E-2-1.27E+2
PERMMJ, net calorific value4.17E-1NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
PERTMJ, net calorific value1.01E+3NDNDNDNDNDNDNDNDND2.04E-17.67E-20.00E+01.72E-2-1.27E+2
PENREMJ, net calorific value3.34E+3NDNDNDNDNDNDNDNDND1.29E+14.68E+00.00E+09.58E-1-9.18E+2
PENRMMJ, net calorific value5.72E+1NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
PENRTMJ, net calorific value3.39E+3NDNDNDNDNDNDNDNDND1.29E+14.68E+00.00E+09.57E-1-9.18E+2
SMkg0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
RSFMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
NRSFMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
FWm36.83E+0NDNDNDNDNDNDNDNDND6.50E-36.10E-40.00E+01.55E-3-6.36E-1
AcronymsPERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Waste indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
HWDkg9.45E-2NDNDNDNDNDNDNDNDND5.08E-53.15E-50.00E+07.84E-6-2.68E-2
NHWDkg1.54E+1NDNDNDNDNDNDNDNDND1.74E-22.22E-10.00E+03.69E-1-2.94E+0
RWDkg1.23E-2NDNDNDNDNDNDNDNDND8.31E-61.49E-60.00E+02.28E-7-9.18E-4
AcronymsHWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Output flow indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
CRUkg0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
MFRkg1.24E+1NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
MERkg0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
EEEMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
EETMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
AcronymsCRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Results for additional scenarios for modules A4-C4

Description of the scenario/methodResults for 100% landfill at end of life
Results for additional scenarios for modules A4-C4
Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Global Warming Potential total GWP-totalkg CO2 eq.1.00E+0NDNDNDNDNDNDNDNDND8.00E+00.00E+00.00E+06.00E+0ND
Global Warming Potential fossil fuels GWP-fossilkg CO2 eq.1.00E+0NDNDNDNDNDNDNDNDND8.00E+00.00E+00.00E+06.00E+0ND
Global Warming Potential biogenic GWP-biogenickg CO2 eq.7.00E+0NDNDNDNDNDNDNDNDND6.00E+00.00E+00.00E+01.00E+0ND
Global Warming Potential land use and land use change GWP-luluckg CO2 eq.2.00E+0NDNDNDNDNDNDNDNDND7.00E+00.00E+00.00E+03.00E+0ND
Depletion potential of the stratospheric ozone layerODPkg CFC 11 eq.3.00E+0NDNDNDNDNDNDNDNDND1.00E+00.00E+00.00E+01.00E+0ND
Acidification potentialAPmol H+ eq.1.00E+0NDNDNDNDNDNDNDNDND2.00E+00.00E+00.00E+04.00E+0ND
Eutrophication potential, fraction of nutrients reaching freshwater end compartmentEP-freshwaterkg P eq.8.00E+0NDNDNDNDNDNDNDNDND1.00E+00.00E+00.00E+05.00E+0ND
Eutrophication potential, fraction of nutrients reaching marine end compartmentEP-marinekg N eq.1.00E+0NDNDNDNDNDNDNDNDND4.00E+00.00E+00.00E+01.00E+0ND
Eutrophication potential, Accumulated ExceedanceEP-terrestrialmol N eq.1.00E+0NDNDNDNDNDNDNDNDND4.00E+00.00E+00.00E+01.00E+0ND
Formation potential of tropospheric ozonePOCPkg NMVOC eq.6.00E+0NDNDNDNDNDNDNDNDND2.00E+00.00E+00.00E+06.00E+0ND
Abiotic depletion potential for non-fossil resources ADP-minerals& metalskg Sb eq.5.00E+0NDNDNDNDNDNDNDNDND9.00E+00.00E+00.00E+09.00E+0ND
Abiotic depletion for fossil resources potential ADP-fossilMJ1.00E+0NDNDNDNDNDNDNDNDND2.00E+00.00E+00.00E+09.00E+0ND
Water (user) deprivation potential, deprivation-weighted water consumptionWDPm32.00E+0NDNDNDNDNDNDNDNDND2.00E+00.00E+00.00E+06.00E+0ND
Acronyms
Disclaimers
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Results for additional scenarios for modules A4-C4

Description of the scenario/methodResults for 100% incineration at end of life
Results for additional scenarios for modules A4-C4
Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Global Warming Potential total GWP-totalkg CO2 eq.2.00E+0NDNDNDNDNDNDNDNDND8.00E+02.00E+00.00E+05.00E+0ND
Global Warming Potential fossil fuels GWP-fossilkg CO2 eq.2.00E+0NDNDNDNDNDNDNDNDND8.00E+02.00E+00.00E+05.00E+0ND
Global Warming Potential biogenic GWP-biogenickg CO2 eq.6.00E+0NDNDNDNDNDNDNDNDND6.00E+04.00E+00.00E+01.00E+0ND
Global Warming Potential land use and land use change GWP-luluckg CO2 eq.3.00E+0NDNDNDNDNDNDNDNDND7.00E+08.00E+00.00E+08.00E+0ND
Depletion potential of the stratospheric ozone layerODPkg CFC 11 eq.3.00E+0NDNDNDNDNDNDNDNDND1.00E+05.00E+00.00E+04.00E+0ND
Acidification potentialAPmol H+ eq.1.00E+0NDNDNDNDNDNDNDNDND2.00E+07.00E+00.00E+03.00E+0ND
Eutrophication potential, fraction of nutrients reaching freshwater end compartment EP-freshwaterkg P eq.1.00E+0NDNDNDNDNDNDNDNDND1.00E+01.00E+00.00E+04.00E+0ND
Eutrophication potential, fraction of nutrients reaching marine end compartment EP-marinekg N eq.2.00E+0NDNDNDNDNDNDNDNDND4.00E+02.00E+00.00E+01.00E+0ND
Eutrophication potential, Accumulated Exceedance EP-terrestrialmol N eq.1.00E+0NDNDNDNDNDNDNDNDND4.00E+02.00E+00.00E+01.00E+0ND
Formation potential of tropospheric ozonePOCPkg NMVOC eq.7.00E+0NDNDNDNDNDNDNDNDND2.00E+01.00E+00.00E+03.00E+0ND
Abiotic depletion potential for non-fossil resources ADP-minerals& metalskg Sb eq.6.00E+0NDNDNDNDNDNDNDNDND9.00E+08.00E+00.00E+07.00E+0ND
Abiotic depletion for fossil resources potentialADP-fossilMJ1.00E+0NDNDNDNDNDNDNDNDND2.00E+02.00E+00.00E+08.00E+0ND
Water (user) deprivation potential, deprivation-weighted water consumptionWDPm33.00E+0NDNDNDNDNDNDNDNDND2.00E+01.00E+00.00E+03.00E+0ND
Acronyms
Disclaimers
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Results for additional scenarios for modules A4-C4

Description of the scenario/methodResults for 100% recycle at end of life
Results for additional scenarios for modules A4-C4
Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Global Warming Potential total GWP-totalkg CO2 eq.2.00E+0NDNDNDNDNDNDNDNDND5.00E+08.00E+01.00E+00.00E+0ND
Global Warming Potential fossil fuels GWP-fossilkg CO2 eq.2.00E+0NDNDNDNDNDNDNDNDND5.00E+08.00E+01.00E+00.00E+0ND
Global Warming Potential biogenic GWP-biogenickg CO2 eq.6.00E+0NDNDNDNDNDNDNDNDND9.00E+06.00E+02.00E+00.00E+0ND
Global Warming Potential land use and land use change GWP-luluckg CO2 eq.3.00E+0NDNDNDNDNDNDNDNDND2.00E+07.00E+05.00E+00.00E+0ND
Depletion potential of the stratospheric ozone layerODPkg CFC 11 eq.3.00E+0NDNDNDNDNDNDNDNDND1.00E+01.00E+03.00E+00.00E+0ND
Acidification potentialAPmol H+ eq.1.00E+0NDNDNDNDNDNDNDNDND2.00E+02.00E+04.00E+00.00E+0ND
Eutrophication potential, fraction of nutrients reaching freshwater end compartment EP-freshwaterkg P eq.1.00E+0NDNDNDNDNDNDNDNDND2.00E+01.00E+01.00E+00.00E+0ND
Eutrophication potential, fraction of nutrients reaching marine end compartmentEP-marinekg N eq.2.00E+0NDNDNDNDNDNDNDNDND2.00E+04.00E+01.00E+00.00E+0ND
Eutrophication potential, Accumulated ExceedanceEP-terrestrialmol N eq.1.00E+0NDNDNDNDNDNDNDNDND1.00E+04.00E+01.00E+00.00E+0ND
Formation potential of tropospheric ozonePOCPkg NMVOC eq.7.00E+0NDNDNDNDNDNDNDNDND3.00E+02.00E+07.00E+00.00E+0ND
Abiotic depletion potential for non-fossil resources ADP-minerals& metalskg Sb eq.6.00E+0NDNDNDNDNDNDNDNDND1.00E+09.00E+04.00E+0ND
Abiotic depletion for fossil resources potentialADP-fossilMJ1.00E+0NDNDNDNDNDNDNDNDND1.00E+02.00E+01.00E+00.00E+0ND
Water (user) deprivation potential, deprivation-weighted water consumptionWDPm33.00E+0NDNDNDNDNDNDNDNDND-1.00E+02.00E+08.00E+0ND
Acronyms
Disclaimers
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Abbreviations

Not applicable

References

General Programme Instructions of International EPD System. Version 5.0.0

PCR 2019:14, Construction Products, Version 2.0.1

Version history

Original version of the EPD
