EPD-IES-0025894:002
RAFFSTORE
Self-supporting box, particularly suited for installing venetian blinds and raffstores. The hs Raffstore box can be supplied for different wall thicknesses and heights. It simplifies and speeds up installation, as its width adapts to the wall thickness and therefore requires no additional masonry work. The box has an average weight of about 13 kg per linear metre.
General information
| EPD Owner | Sloschek Helmuth srl |
|---|---|
| Registration number | EPD-IES-0025894:002 |
| PCR | 2019:14 Construction products (EN 15804+A2) 2.0.1 |
| Status | Valid |
| Publication date | 2025-10-23 |
| Valid until | 2030-09-24 |
| EN 15804 compliant | Yes |
| Geographical scope | Italy |
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | PCR 2019:14 Construction products (EN 15804+A2) (2.0.1) |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
Verification
| LCA accountability | segreteria@spinlife.it, segreteria@spinlife.it, Spin Life S.r.l. |
|---|---|
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
| Third-party verifier | Bureau Veritas Italia S.p.A. |
| Accredited by | Accredia |
| Accredited certification body address | Italy |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | Sloschek Helmuth srl |
|---|---|
| Contact person name | Klaus Sloschek |
| Contact person e-mail | klaus.sloschek@hs.bz.it |
| Organisation address | Italy Bressanone 39042 Via Julius Durst, 26/A |
Description of the organisation of the EPD Owner
Slosheck Helmuth s.r.l. is an Italian company based in Bressanone, specializing in the design and production of roller shutters and integrated shutter boxes for residential and commercial buildings. It delivers customized solutions to improve energy efficiency, acoustic insulation, and indoor comfort. The offering includes roller shutters, modular shutter boxes, and accessories in various finishes and materials, with a strong focus on quality, sustainability, and safety, supported by a network of partners in Italy, Austria, and Germany.
Organisation logo
Product information
| Product name | RAFFSTORE |
|---|---|
| Product identification | Shutter box |
| Product description | Self-supporting box, particularly suited for installing venetian blinds and raffstores. The hs Raffstore box can be supplied for different wall thicknesses and heights. It simplifies and speeds up installation, as its width adapts to the wall thickness and therefore requires no additional masonry work. The box has an average weight of about 13 kg per linear metre. |
| Technical purpose of product | The roller shutter box is a container, usually installed at the top of a window or French door opening, designed to house and protect the roller on which the shutter is wound when it is raised. |
| Manufacturing or service provision description | The product is made from semi-finished materials, such as steel sheets and polystyrene, which are cut and joined together using adhesives to form the finished product. |
| Material properties | Mass per piece: 9.43 kg/piece |
| Manufacturing site | Slosheck Helmuth s.r.l. Slosheck Helmuth s.r.l. Italy Bressanone 39042 |
| UN CPC code | 4291. Domestic metal products |
| Geographical scope | Italy |

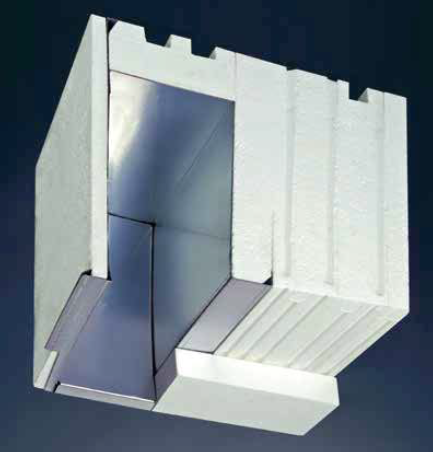

Product images
Content declaration
| Content declaration of multiple products | The mass (weight) of one unit of a product, as purchased: 9,43 kg (worst case) |
|---|---|
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| Galvanized steel sheet | 7.46 | 0 | 0 | 0 |
| White polystyrene | 1.83 | 0 | 0 | 0 |
| Galvanized steel | 0.03 | 0 | 0 | 0 |
| Polyurethane adhesive | 0.05 | 0 | 0 | 0 |
| Adhesive (glue) | 0.05 | 0 | 0 | 0 |
| Single-component PU-B3 polyurethane foam | 0.01 | 0 | 0 | 0 |
| Total | 9.43 | 0 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | RAFFSTORE Number of pieces: 1 piece(s) |
| Conversion factor to mass | 1 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.10 database |
| LCA Software | SimaPro SimaPro 9.6 |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | The set of impact categories suggested by the PEF methodology (EF 3.1 method as implemented in SimaPro software) was applied to assess potential environmental impacts. This method is the set recommended by European methodology and Standard EN 15804+A2 (CEN, 2019). |
| Technology description including background system | The products considered are the RAFFSTORE box. The product is made from semi-finished materials, such as steel sheets and polystyrene, which are cut and joined together using adhesives to form the finished product. |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | The primary data cover a period of 12 months, reference year January 2024 - December 2024. The primary data cover a period of 12 months, reference year January 2024 - December 2024. The assessment of data quality is carried out and complies with EN 15941 which cover the geographical, technical, and temporal representativeness of the data, and account for the precision, completeness, consistency, and sources of the data. |
|---|
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| Generation of components of the product | Database | Ecoinvent v3.10 | 2024 | Secondary data | 0% |
| Manufacturing of product | Collected data | EPD owner | 2024 | Primary data | 18.1% |
| Generation of electricity used in manufacturing of product | Database | Ecoinvent v3.10 | 2024 | Secondary data | 0% |
| Transport of raw materials from supplier to manufacturing site | Database | Ecoinvent v3.10 | 2024 | Primary data | 0.9% |
| Wastes during manufacturing phase | Database | Ecoinvent v3.10 | 2024 | Secondary data | 0% |
| End of life | Database | Eurostat | 2020 | Secondary data | 0% |
| Total share of primary data, of GWP-GHG results for A1-A3 | 19% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Residual electricity mix on the market | |
| Energy sources | Hydro | 10.26% |
| Wind | 7.48% | |
| Solar | 6.94% | |
| Biomass | 7.24% | |
| Geothermal | 2.08% | |
| Waste | 0% | |
| Nuclear | 1.9% | |
| Natural gas | 49.95% | |
| Coal | 8.84% | |
| Oil | 3.24% | |
| Peat | 0.01% | |
| Other | 2.06% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 0.64 kg CO2 eq./kWh | |
System boundary
| Description of the system boundary | a) Cradle to gate with modules C1-C4 and module D (A1-A3 + C + D). |
|---|---|
| Excluded modules | No, there is no excluded module, or there are no excluded modules |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | ND | ND | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Global | Global | Italy | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Global | Global | Global | Global | Global | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 19% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 18.46% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

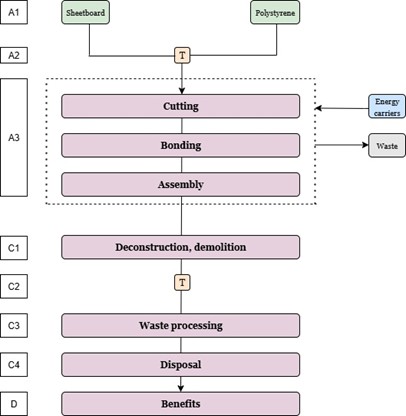

Description of the process flow diagram(s)
The system boundaries include the mandatory modules A1, A2, A3, C1, C2, C3, C4 and D required by Standard EN 15804 (CEN, 2019), according to a “from cradle to gate with module C1-C4 and module D” type application.
Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Worst case |
|---|---|
| Description of the default scenario | 1 unit of a product (referred to worst case product RAFFSTORE 500cmx300/340cmx1000cm). |
Module C: End-of-life
| Explanatory name of the default scenario in module C | Major mineral waste |
|---|---|
| Brief description of the default scenario in module C | C3 55,36% recycling; C4 6,84% municipal incineration and 37,77% unsanitary landfill |
| Description of the default scenario in module C | Eurostat scenario (“major mineral waste”): for the products in exam 55,38% 0% is sent to recycle, 6,84% to incineration and 37,77% to landfill. |
| Module C information | Value | Unit |
|---|---|---|
| Product demolition | 0,239 | MJ |
| Transport to the treatment site for materials not sent to incineration | 80 | km |
| Transport to the treatment site for materials sent to incineration | 130 | km |
| Preliminary treatments prior to recovery | 55,36 | % |
| Disposal of materials | 44,54 | % |
Reference service life
| Description of the default scenario in reference service life | Lifespan of the building in which the shutter box is installed |
|---|
| Reference service life information | Value | Unit |
|---|---|---|
Reference service life | Lifespan of the building | N/A |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | BENEFITS |
|---|---|
| Brief description of the default scenario in module D | Potential impacts and benefits associated with product recycling. |
| Description of the default scenario in module D | Module D is calculated by the Circular Footprint Formula |
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 3.62E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.01E-1 | 1.52E-1 | 0.00E+0 | 4.69E+0 | -8.38E+0 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 3.61E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.01E-1 | 1.52E-1 | 0.00E+0 | 5.55E-1 | -8.37E+0 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -7.01E-1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.97E-4 | 2.73E-5 | 0.00E+0 | 2.00E+1 | -1.23E-2 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 3.05E-2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.26E-5 | 4.98E-5 | 0.00E+0 | 5.59E-5 | -1.42E-3 |
| Ozone depletion | ODP | kg CFC-11 eq. | 4.62E-7 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 8.58E-9 | 3.03E-9 | 0.00E+0 | 5.83E-10 | -5.89E-8 |
| Acidification | AP | mol H+ eq. | 3.00E-1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.06E-3 | 4.76E-4 | 0.00E+0 | 4.83E-4 | -3.32E-2 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 1.12E-2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.21E-5 | 1.02E-5 | 0.00E+0 | 2.92E-4 | -2.10E-3 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 3.49E-2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.08E-4 | 1.61E-4 | 0.00E+0 | 3.77E-3 | -6.51E-3 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 1.01E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.21E-3 | 1.75E-3 | 0.00E+0 | 1.71E-3 | -7.03E-2 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 1.22E-1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.01E-3 | 7.46E-4 | 0.00E+0 | 1.95E-3 | -2.72E-2 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 6.28E-4 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.19E-7 | 4.87E-7 | 0.00E+0 | 5.48E-8 | -4.66E-5 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 1.98E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.20E+0 | 1.75E-1 | 0.00E+0 | 6.09E-2 | -4.73E+1 |
| Water use | WDP1 | m3 world eq. deprived | 1.58E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E-1 | 8.76E-3 | 0.00E+0 | 2.58E-2 | -2.89E+0 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 3.62E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.01E-1 | 1.52E-1 | 0.00E+0 | 4.69E+0 | -8.38E+0 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Additional voluntary environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Particulate matter emissions | PM | Disease incidence | 1.61E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.03E-1 | 1.27E+0 | 0.00E+0 | 1.97E+0 | -1.70E+1 |
| Ionizing radiation - human health | IRP1 | kBq U235 eq. | 3.53E-6 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.83E-9 | 1.20E-8 | 0.00E+0 | 6.47E-9 | -5.23E-7 |
| Eco-toxicity - freshwater | ETP-fw2 | CTUe | 2.19E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.55E-2 | 2.74E-3 | 0.00E+0 | 4.18E-4 | -8.82E-2 |
| Human toxicity - cancer effects | HTP-c2 | CTUh | 2.65E-6 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 6.24E-10 | 1.06E-9 | 0.00E+0 | 5.32E-10 | -1.34E-6 |
| Human toxicity - non-cancer effects | HTP-nc2 | CTUh | 6.43E-7 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.43E-9 | 1.33E-9 | 0.00E+0 | 1.18E-8 | -5.16E-8 |
| Land-use related impacts/soil quality | SQP2 | Dimensionless | 1.61E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 6.14E-1 | 5.74E-1 | 0.00E+0 | 1.21E+1 | -3.58E+2 |
| Acronyms | PM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator. | ||||||||||||||||
| Disclaimer 2 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 4.33E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 9.32E-2 | 3.50E-2 | 0.00E+0 | 7.86E-3 | -5.26E+0 |
| PERM | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PERT | MJ, net calorific value | 4.33E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 9.32E-2 | 3.50E-2 | 0.00E+0 | 7.86E-3 | -5.26E+0 |
| PENRE | MJ, net calorific value | 4.72E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.91E+0 | 2.14E+0 | 0.00E+0 | 4.37E-1 | -1.29E+2 |
| PENRM | MJ, net calorific value | 7.32E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PENRT | MJ, net calorific value | 5.45E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.91E+0 | 2.14E+0 | 0.00E+0 | 4.37E-1 | -1.29E+2 |
| SM | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 4.35E-1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.97E-3 | 2.79E-4 | 0.00E+0 | 7.10E-4 | -7.33E-2 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 4.14E-2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.32E-5 | 1.44E-5 | 0.00E+0 | 3.58E-6 | -4.92E-4 |
| NHWD | kg | 2.33E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 7.94E-3 | 1.02E-1 | 0.00E+0 | 1.68E-1 | -2.67E-1 |
| RWD | kg | 5.55E-4 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.79E-6 | 6.81E-7 | 0.00E+0 | 1.04E-7 | -2.23E-5 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 6.16E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MER | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Results for additional scenarios for modules A4-C4
| Description of the scenario/method | 100% landfill at end of life |
|---|
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Global Warming Potential total | GWP-total | kg CO2 eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.00E+0 | 0.00E+0 | 0.00E+0 | 6.00E+0 | 0.00E+0 |
| Global Warming Potential fossil fuels | GWP-fossil | kg CO2 eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.00E+0 | 0.00E+0 | 0.00E+0 | 6.00E+0 | 0.00E+0 |
| Global Warming Potential biogenic | GWP-biogenic | kg CO2 eq. | -7.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.00E+0 | 0.00E+0 | 0.00E+0 | 1.00E+0 | 0.00E+0 |
| Global Warming Potential land use and land use change | GWPluluc | kg CO2 eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.00E+0 | 0.00E+0 | 0.00E+0 | 3.00E+0 | 0.00E+0 |
| Depletion potential of the stratospheric ozone layer | ODP | kg CFC 11 eq. | 4.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 8.00E+0 | 0.00E+0 | 0.00E+0 | 1.00E+0 | 0.00E+0 |
| Acidification potential | AP | mol H+ eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 0.00E+0 | 0.00E+0 | 4.00E+0 | 0.00E+0 |
| Eutrophication potential, fraction of nutrients reaching freshwater end compartment | EP-freshwater | kg P eq. | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.00E+0 | 0.00E+0 | 0.00E+0 | 5.00E+0 | 0.00E+0 |
| Eutrophication potential, fraction of nutrients reaching marine end compartment | EPmarine | kg N eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.00E+0 | 0.00E+0 | 0.00E+0 | 1.00E+0 | 0.00E+0 |
| Eutrophication potential, Accumulated Exceedance | EP-terrestrial | mol N eq. | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.00E+0 | 0.00E+0 | 0.00E+0 | 1.00E+0 | 0.00E+0 |
| Formation potential of tropospheric ozone | POCP | kg NMVOC eq. | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 0.00E+0 | 0.00E+0 | 6.00E+0 | 0.00E+0 |
| Abiotic depletion potential for non-fossil resources | ADPminerals& metals | kg Sb eq. | 6.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.00E+0 | 0.00E+0 | 0.00E+0 | 9.00E+0 | 0.00E+0 |
| Abiotic depletion for fossil resources potential | ADP-fossil | MJ | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 0.00E+0 | 0.00E+0 | 9.00E+0 | 0.00E+0 |
| Water (user) deprivation potential, deprivation-weighted water consumption | WDP | m3 | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 0.00E+0 | 0.00E+0 | 6.00E+0 | 0.00E+0 |
| Acronyms | |||||||||||||||||
| Disclaimers | |||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Results for additional scenarios for modules A4-C4
| Description of the scenario/method | 100% incineration at end of life |
|---|
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Global Warming Potential total | GWPtotal | kg CO2 eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.00E+0 | 2.00E+0 | 0.00E+0 | 5.00E+0 | |
| Global Warming Potential fossil fuels | GWP-fossil | kg CO2 eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.00E+0 | 2.00E+0 | 0.00E+0 | 5.00E+0 | |
| Global Warming Potential biogenic | GWP-biogenic | kg CO2 eq. | -7.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.00E+0 | 4.00E+0 | 0.00E+0 | 1.00E+0 | |
| Global Warming Potential land use and land use change | GWPluluc | kg CO2 eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.00E+0 | 8.00E+0 | 0.00E+0 | 8.00E+0 | |
| Depletion potential of the stratospheric ozone layer | ODP | kg CFC 11 eq. | 4.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 8.00E+0 | 5.00E+0 | 0.00E+0 | 4.00E+0 | |
| Acidification potential, Accumulated Exceedance | AP | mol H+ eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 7.00E+0 | 0.00E+0 | 3.00E+0 | |
| Eutrophication potential, fraction of nutrients reaching freshwater end compartment | EP-freshwater | kg P eq. | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.00E+0 | 1.00E+0 | 0.00E+0 | 4.00E+0 | |
| Eutrophication potential, fraction of nutrients reaching marine end compartment | EPmarine | kg N eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.00E+0 | 2.00E+0 | 0.00E+0 | 1.00E+0 | |
| Eutrophication potential, Accumulated Exceedance | EP-terrestrial | mol N eq. | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.00E+0 | 2.00E+0 | 0.00E+0 | 1.00E+0 | |
| Formation potential of tropospheric ozone | POCP | kg NMVOC eq. | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 1.00E+0 | 0.00E+0 | 3.00E+0 | |
| Abiotic depletion potential for non-fossil resources | ADPminerals& metals | kg Sb eq. | 6.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.00E+0 | 8.00E+0 | 0.00E+0 | 7.00E+0 | |
| Abiotic depletion for fossil resources potential | ADP-fossil | MJ | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 2.00E+0 | 0.00E+0 | 8.00E+0 | |
| Water (user) deprivation potential, deprivation-weighted water consumption | WDP | m3 | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 1.00E+0 | 0.00E+0 | 3.00E+0 | |
| Acronyms | |||||||||||||||||
| Disclaimers | |||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Results for additional scenarios for modules A4-C4
| Description of the scenario/method | 100% recycle at end of life |
|---|
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Global Warming Potential total | GWPtotal | kg CO2 eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.00E+0 | 1.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Global Warming Potential fossil fuels | GWP-fossil | kg CO2 eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.00E+0 | 1.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Global Warming Potential biogenic | GWP-biogenic | kg CO2 eq. | -7.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.00E+0 | 2.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Global Warming Potential land use and land use change | GWPluluc | kg CO2 eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.00E+0 | 5.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Depletion potential of the stratospheric ozone layer; | ODP | kg CFC 11 eq. | 4.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 8.00E+0 | 3.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acidification potential, Accumulated Exceedance | AP | mol H+ eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 4.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Eutrophication potential, fraction of nutrients reaching freshwater end compartment | EP-freshwater | kg P eq. | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.00E+0 | 1.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Eutrophication potential, fraction of nutrients reaching marine end compartment | EPmarine | kg N eq. | 3.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.00E+0 | 1.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Eutrophication potential, Accumulated Exceedance | EP-terrestrial | mol N eq. | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.00E+0 | 1.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Formation potential of tropospheric ozone; ADP-minerals&metals | POCP | kg NMVOC eq. | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 7.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Abiotic depletion potential for non-fossil resources | ADPminerals& metals | kg Sb eq. | 6.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 4.00E+0 | 4.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Abiotic depletion for fossil resources potentia | ADP-fossil | MJ | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 1.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Water (user) deprivation potential, deprivation-weighted water consumption | WDP | m3 | 1.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E+0 | 8.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | |||||||||||||||||
| Disclaimers | |||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Abbreviations
Not applicable
References
General Programme Instructions of International EPD System. Version 5.0.0
PCR 2019:14, Construction Products, Version 2.0.1
Version history
Original version of the EPD
