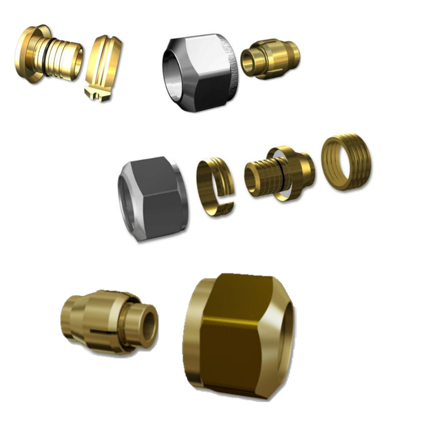

LK Connection Coupling

For connecting the LK Universal Pipe to the LK Manifold UNI. Art. no. 481 43 73 is also intended for connecting LK Universal Pipe A16 and X16 to LK Conex Coupling CU15.

AX16 x 1/2” has a 25 mm nut, AX16 x 3/4” has a 30 mm nut and AX20 x 3/4” has a 27 mm nut.

Art. no. 481 43 73 is made of yellow brass.

Production takes place in Gnosjö, Sweden, and includes brass stamping and machining, with certain items also being nickel and chrome plated. The products are then assembled and packaged for delivery. The reported values refer to product number 4814374, selected as the representative product due to its highest sales volume within the group and its chrome-plated finish gives a more conservative value.

Recycled materials:Brass - 90%

Climate impact from recycled material is 2,04 kg CO2 eq. per kg (GWP-GHG).

Climate impact from the energy mix in production is 0,07 kg CO2 eq. per kWh (GWP-GHG).
